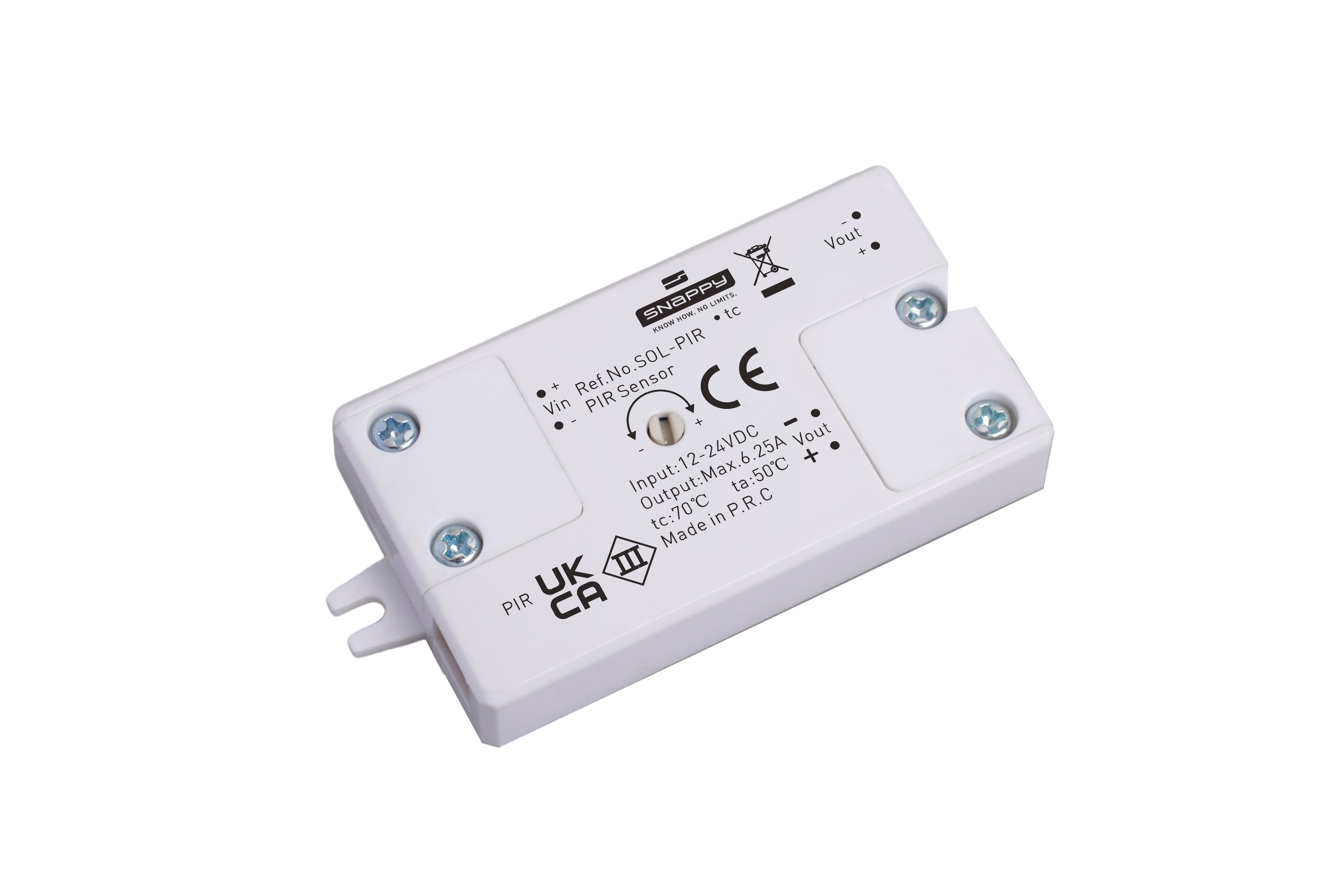

SOL-PIR
Reliable Technical Data
  • Human-body detection sensor
  • Detection range: Max. 2.5m(98-7/16")
  • Detection angle:80°
  • Detection time:10sec~3min
  • Selectable output connection: terminal block and mini plug

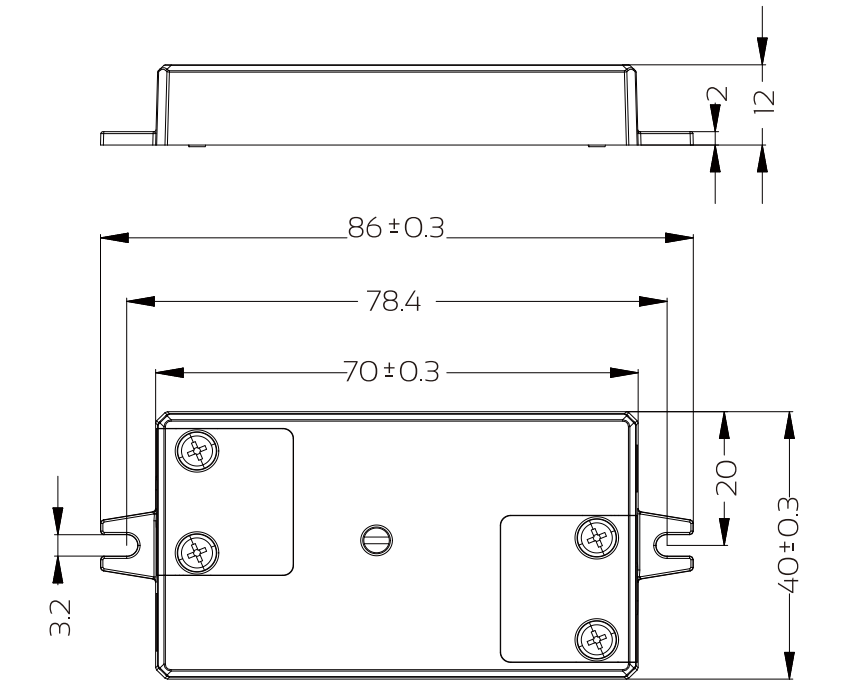

Dimension in mm





Model No. Rated input voltage Rated output current Load Ta L*W*H
SOL-PIR DC 12V 6.25A 0-75W -20~50℃ 86*40*12
DC 24V 6.25A 0-150W -20~50℃ 86*40*12
