HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-OUTdoor / SPF150-12/24/48VSP
SPF150-12/24/48VSP
Reliable Technical Data
  • Input Voltage Range:220-240VAC
  • Input Frequency:50/60Hz
  • Output Power:150W
  • Body:PC Body with Protection Grade IP67
  • Open Circuit; Short Circuit; Over Load;
  • 5 years warranty
  • With PFC Function

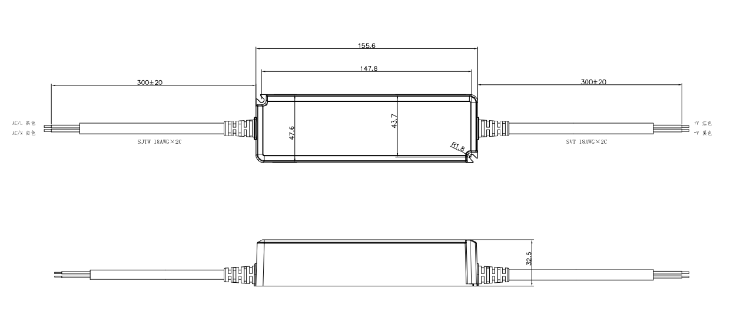

Dimesion drawing
Characteristics

Dimension in mm



Input Voltage Range: AC220-240V 50/60Hz (power factor measured at AC230V and full load)



Model No. Constant output voltage Load Max output current PF Ta Tc L*W*H IP
SPF150-12VSP 12V 0-150W 12.5A ≥0.95 45℃ 90℃ 155.6*47.6*32.5 IP67
SPF150-24VSP 24V 0-150W 6.25A ≥0.95 45℃ 90℃ 155.6*47.6*32.5 IP67
SPF150-48VSP 48V 0-150W 3.125A ≥0.95 45℃ 85℃ 155.6*47.6*32.5 IP67
