HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-OUTdoor / SPF35-12/24/48VSP(UE)

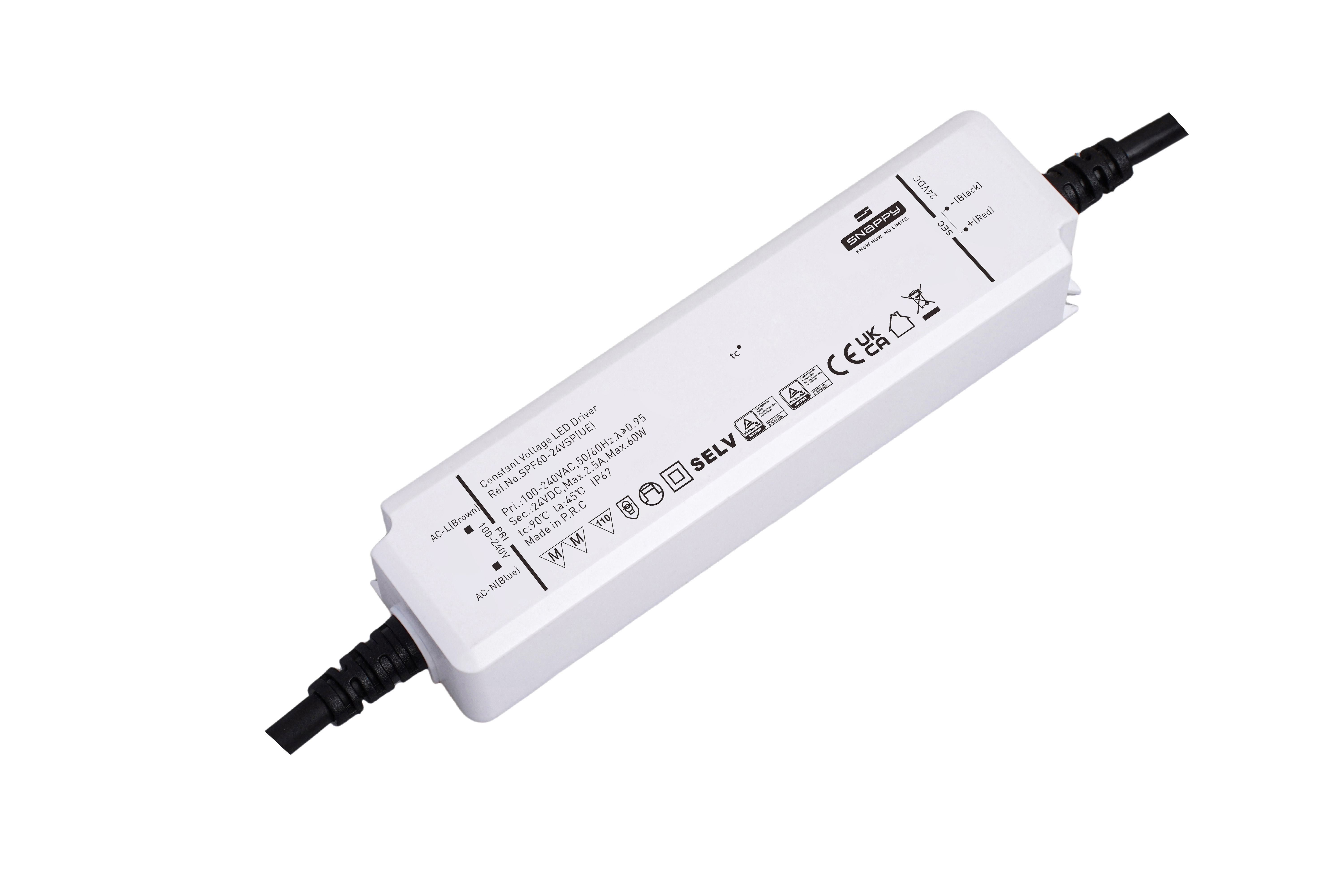

SPF35-12/24/48VSP(UE)
Reliable Technical Data
  • Input Voltage Range:100-240VAC
  • Input Frequency:50/60Hz
  • Output Power: 35W
  • Body: PC Body with Protection Grade IP67
  • Open Circuit; Short Circuit; Over Load;
  • 5 years warranty

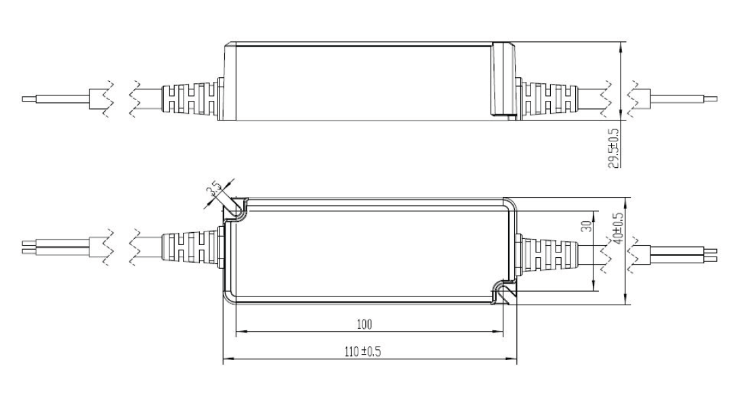

Dimesion drawing
Characteristics

Dimension in mm



Input Voltage Range: AC100-240V 50/60Hz (power factor measured at AC230V and full load)



Model No. Constant output voltage Load Max output current PF Ta Tc L*W*H IP
SPF35-12VSP(UE) 12V 0-35W 2.91A ≥0.95 50℃ 90℃ 110*40*29.5 IP67
SPF35-24VSP(UE) 24V 0-35W 1.45A ≥0.95 50℃ 90℃ 110*40*29.5 IP67
SPF35-48VSP(UE) 48V 0-35W 0.73A ≥0.95 50℃ 90℃ 110*40*29.5 IP67
