HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-Indoor / SS100-12/24VL
SS100-12/24VL
Reliable Technical Data
  • Input Voltage Range: 200-240VAC
  • Input Frequency: 50/60Hz
  • Output Power: 100W
  • Body: PC
  • Open Circuit; Short Circuit; Over Load

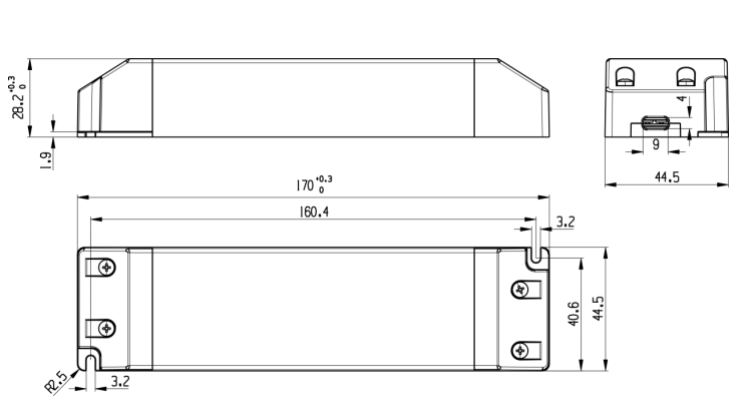

Dimesion drawing
Characteristics

Dimension in mm



Input Voltage Range: AC200-240V 50/60Hz (power factor measured at AC230V and full load)



Model No. Constant output voltage  Load Max output current PF Ta Tc L*W*H
SS100-12VL 12V 0-100W 8.33A ≥0.95 45℃ 90℃ 170*44.5*28.2
SS100-24VL 24V 0-100W 4.16A ≥0.95 45℃ 90℃ 170*44.5*28.2
