HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-OUTdoor / SNP240-24/48VFP-1

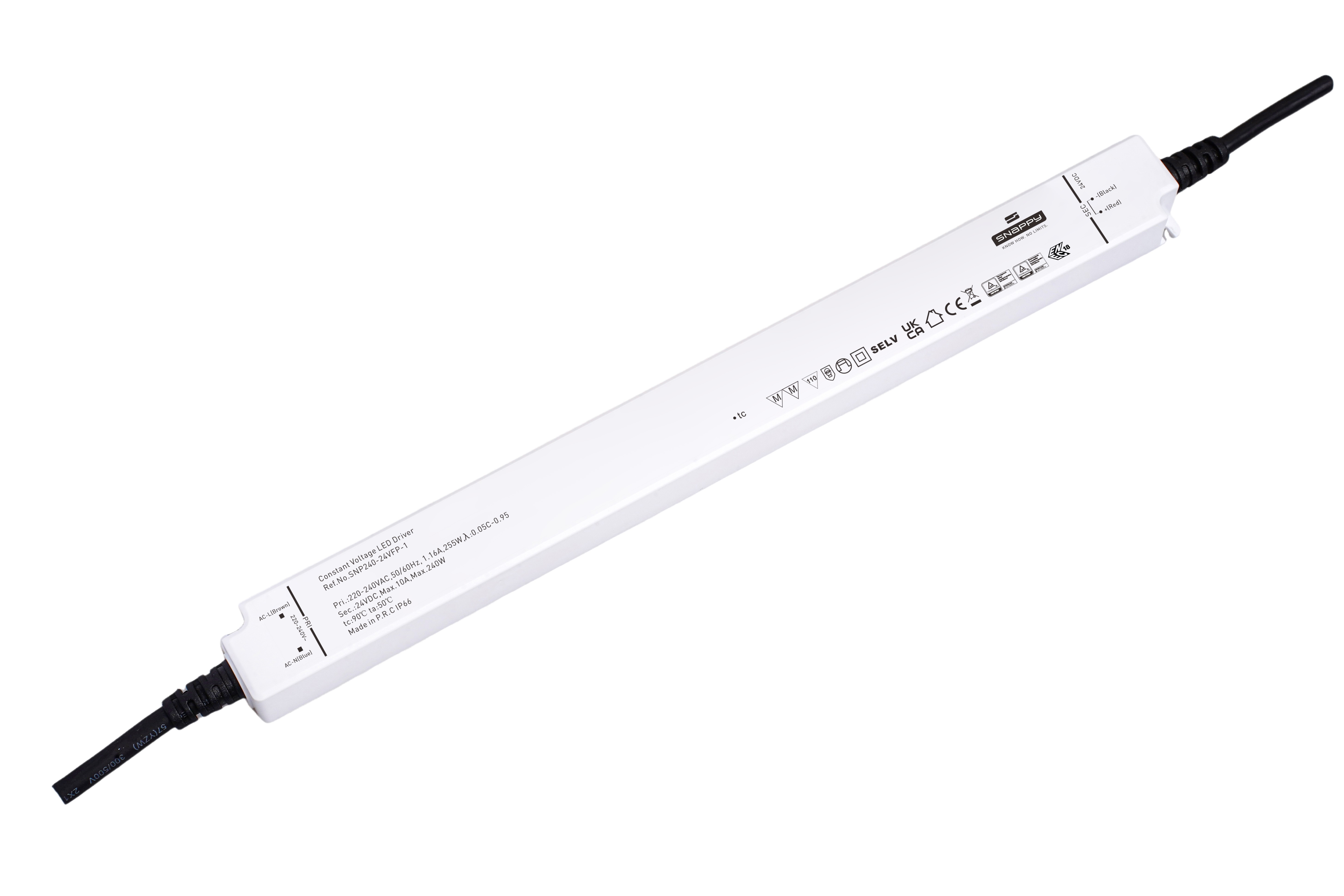

SNP240-24/48VFP-1
Reliable Technical Data
  • Input Voltage Range:220-240VAC(200W/240W)
  • Input Frequency:50/60Hz
  • Output Power:240W
  • Dimension:L315.1xW30xH20mm(SNP200-VFP-1/SNP240-VFP-1)
  • Body:IP66 PC Case
  • Open Circuit; Short Circuit; Over Load;
  • Over Heat Protection

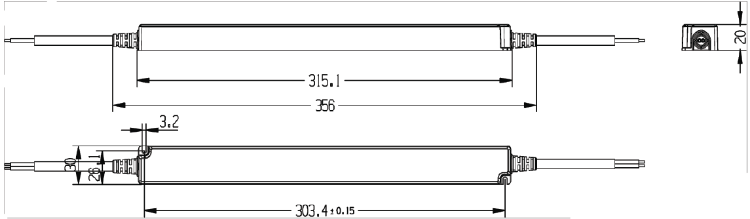

Dimesion drawing
Characteristics

Dimension in mm



Input Voltage Range:AC200-240V(150W). AC220-240V(200W/240W) 50/60Hz (power factor measured at AC230V and full load)



Model No. Constant output voltage Load Max output current PF Ta Tc L*W*H IP
SNP240-24VFP-1 24V 0-240W 10A ≥0.95 60℃ 90℃ 315.1*30*20 IP66
SNP240-48VFP-1 48V 0-240W 5A ≥0.95 60℃ 90℃ 315.1*30*20 IP66
