HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-OUTdoor / SDG150-24/48V6

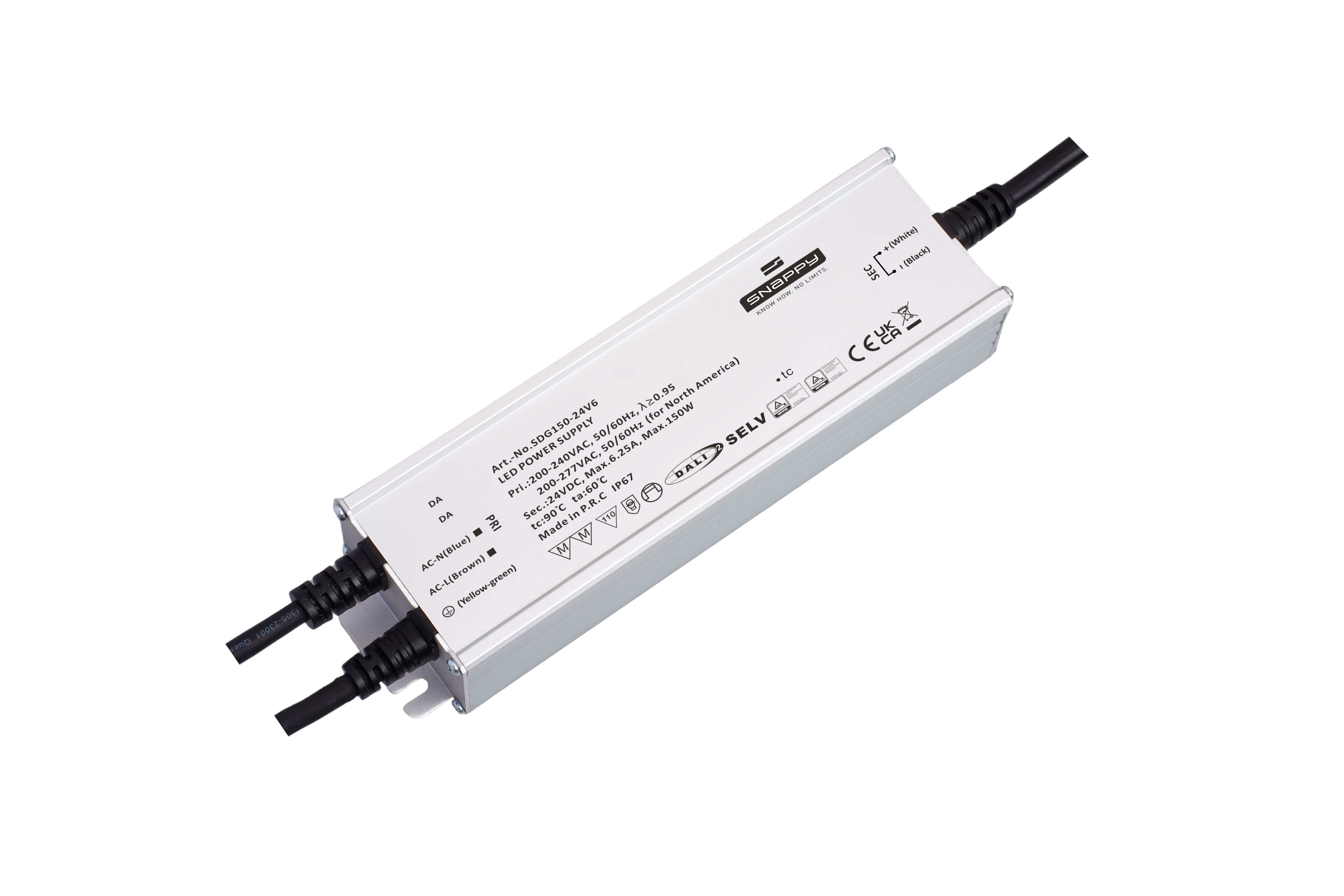

SDG150-24/48V6
Reliable Technical Data
  • Input Voltage Range:200-277VAC
  • IP67 design for indoor or outdoor installation
  • Protections:short circuit/over load/over voltage/over temperature
  • Built in active PFC function
  • Cooling by free air, high reliability
  • 100% burn-in with full load
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulation for LED lightings
  • 5 years warranty

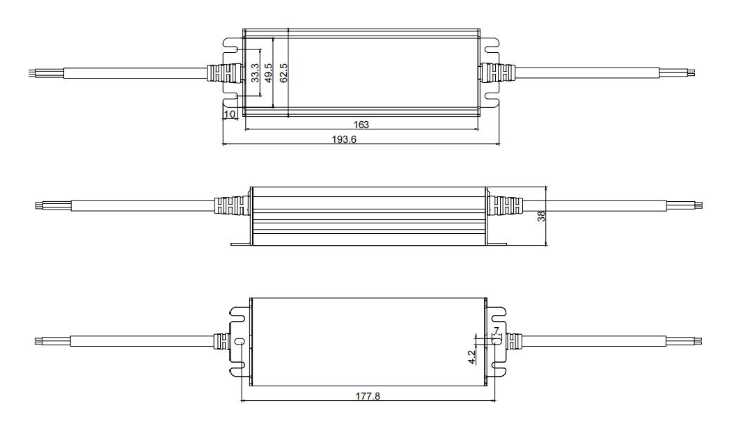

Dimesion drawing
Characteristics

Dimension in mm



Input Voltage Range:AC200-277V 50/60Hz (power factor measured at AC230V and full load)



Model No. Constant output voltage Load Max output current PF Ta Tc L*W*H IP
SDG150-24V6 24V 0-150W 6.25A ≥0.99 70℃ 90℃ 193.6*62.5*38 IP67
SDG150-48V6 48V 0-150W 3.125A ≥0.99 70℃ 90℃ 193.6*62.5*38 IP67
