HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-Indoor / SN42-1050IT
SN42-1050IT
Reliable Technical Data
  • Input Voltage Range: 220-240VAC
  • Input Frequency:50Hz/60Hz
  • Output Power:42W
  • Body:PC
  • Short Circuit；Over Load；Over Voltage

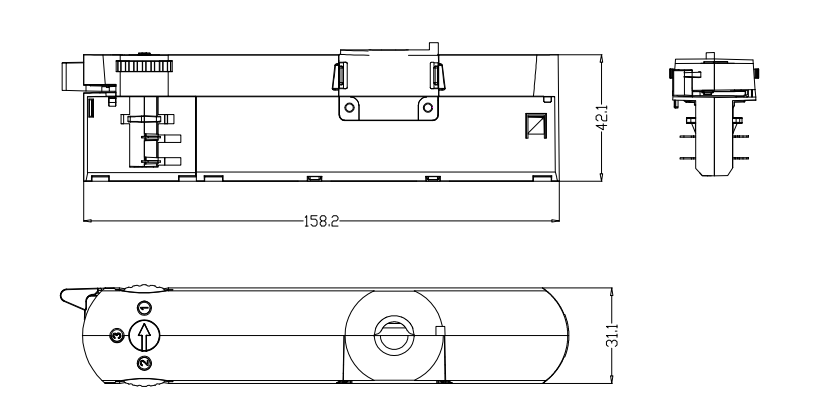

Dimesion drawing
Characteristics

Dimension in mm



Input Voltage Range: AC220-240V 50/60Hz {power factor measured at AC230V and full load}



Model No. Constant Output current Output power range Output voltage  PF Ta Tc L*W*H
SN42-1050IT 300mA 3.0-12.6W 10-42V 0.90-0.93 35℃ 75℃ 158*31.1*42.1
350mA 3.5-14.7W 10-42V 0.65-0.95 35℃ 75℃ 158*31.1*42.1
400mA 4.0-16.8W 10-42V 0.67-0.95 35℃ 75℃ 158*31.1*42.1
450mA 4.5-18.9W 10-42V 0.70-0.97 35℃ 75℃ 158*31.1*42.1
500mA 5.0-21.0W 10-42V 0.74-0.97 35℃ 75℃ 158*31.1*42.1
550mA 5.5-23.1W 10-42V 0.77-0.97 35℃ 75℃ 158*31.1*42.1
600mA 6.0-25.2W 10-42V 0.77-0.97 35℃ 75℃ 158*31.1*42.1
650mA 6.5-27.3W 10-42V 0.81-0.97 35℃ 75℃ 158*31.1*42.1
700mA 7.0-29.4W 10-42V 0.81-0.98 35℃ 75℃ 158*31.1*42.1
750mA 7.5-31.5W 10-42V 0.84-0.98 35℃ 75℃ 158*31.1*42.1
800mA 8.0-33.6W 10-42V 0.84-0.98 35℃ 75℃ 158*31.1*42.1
850mA 8.5-34.0W 10-40V 0.88-0.97 35℃ 75℃ 158*31.1*42.1
900mA 9.0-36.0W 10-40V 0.88-0.98 35℃ 75℃ 158*31.1*42.1
950mA 9.5-38.0W 10-40V 0.88-0.98 35℃ 75℃ 158*31.1*42.1
1000mA 10.0-40.0W 10-40V 0.89-0.98 35℃ 75℃ 158*31.1*42.1
1050mA 10.5-42.0W 10-40V 0.90-0.98 35℃ 75℃ 158*31.1*42.1
