HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-Indoor / SNP100-12/24VFP

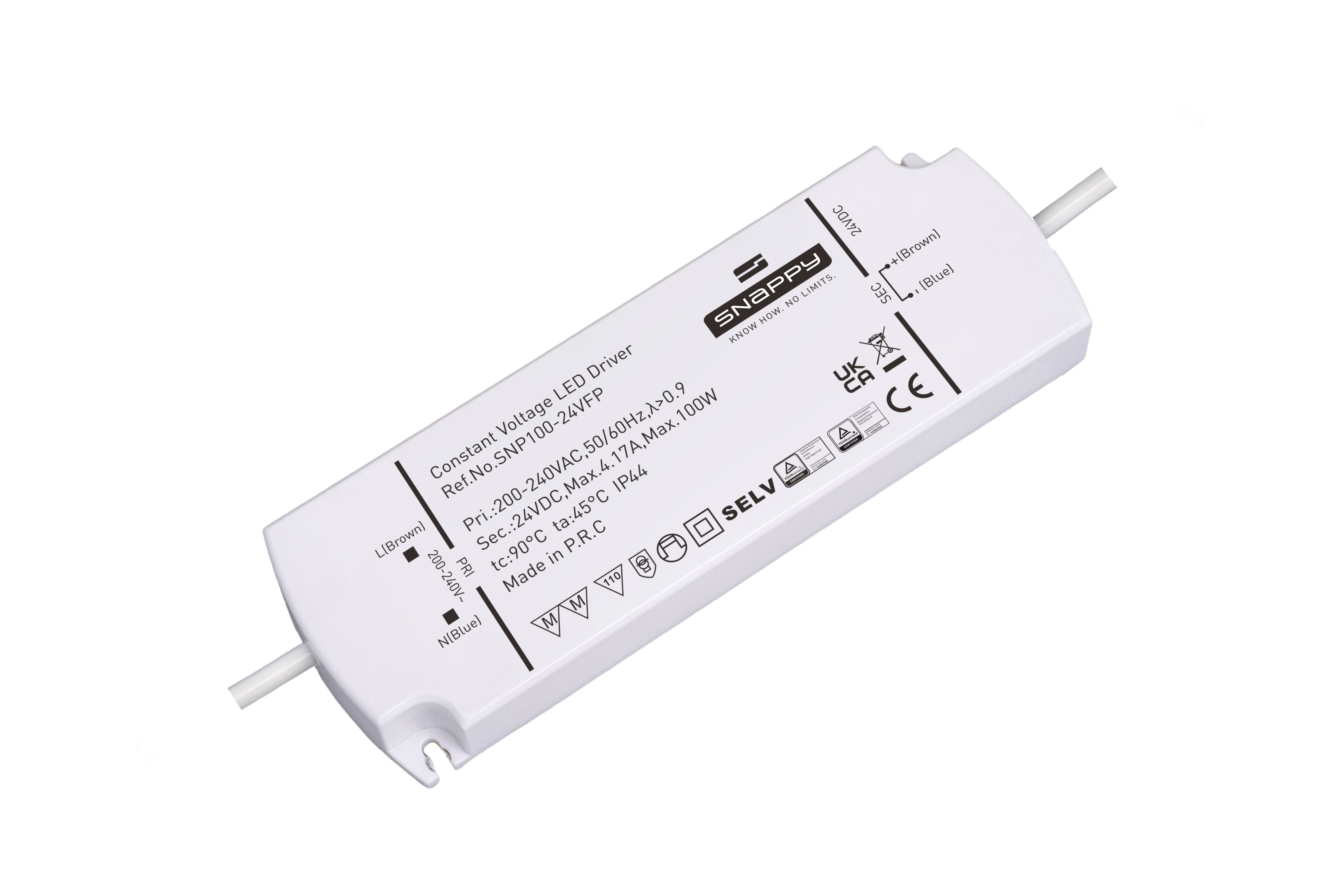

SNP100-12/24VFP
Reliable Technical Data
  • Input Voltage Range: 200-240VAC
  • Input Frequency: 50/60Hz
  • Output Power: 100W
  • Body: PC Body with Protection Grade lP44
  • Open Circuit; Short Circuit; Over Load
  • Over Heat Protection

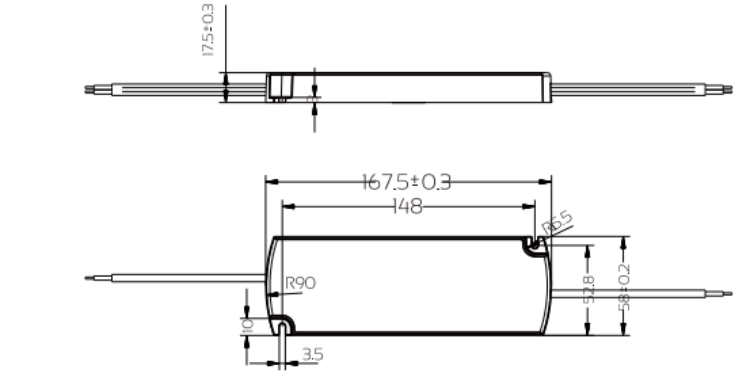

Dimesion drawing
Characteristics

Dimension in mm



Input Voltage Range: AC200-240V 50/60Hz (power factor measured at AC230V and full load)



Model No. Constant output voltage  Load Max output current PF Ta Tc L*W*H IP
SNP100-12VFP 12V 0-100W 8.33A ＞0.9 45℃ 90℃ 167.5*58*17.5 IP44
SNP100-24VFP 24V 0-100W 4.17A ＞0.9 45℃ 90℃ 167.5*58*17.5 IP44
