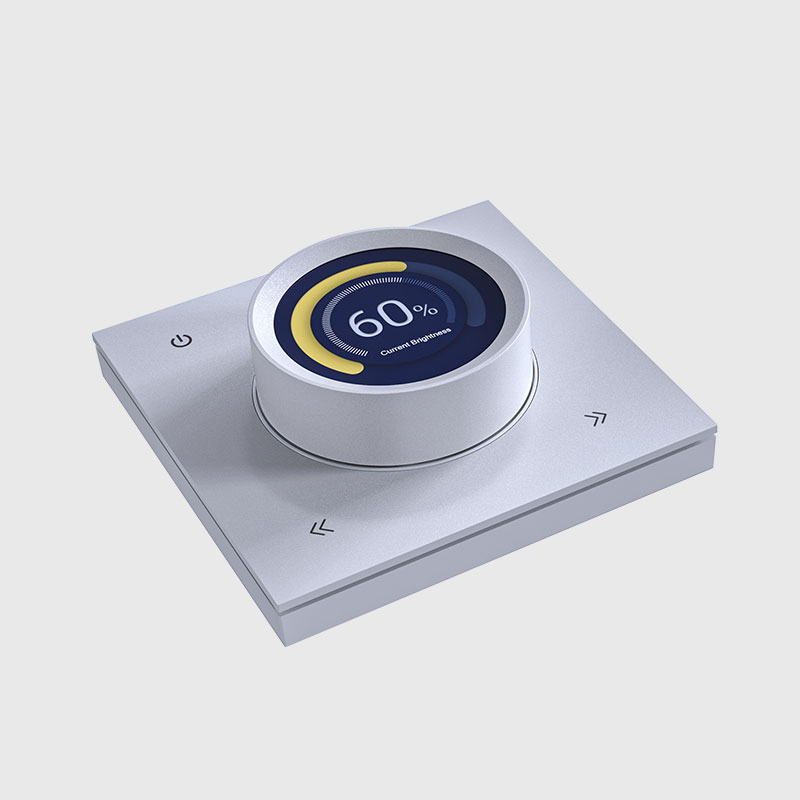

Smart Knob
  • Provides four buttons and rotary operation control
  • Sensitive rotary operation, precise dimming and colour adjustment
  • Operation with LCD display and backlighting of buttons
  • Support 8-channel dimming control, colour temperature control
  • 12-24V DC electricity supply
  • 5 years warranty
Dimensional Diagram

The LCD rotary remote control is an 8-channel wireless remote control device for the Casambi user interface. lt can intuitively display and directly control Casambi lighting.

Parameters
Basic Data Product Size 86*86*26.5mm
Weight 132g/170g
Output Signal Casambi wireless communication
Operating Voltage 12-24VDC
Operating Current MAX 80mA
Remote Control Distance 30m(Accessible open space)
Opearting Temperature -20℃≤Ta≤45℃
TC 50℃
IP Rating IP20
Operating Instructions
Switching and Setting

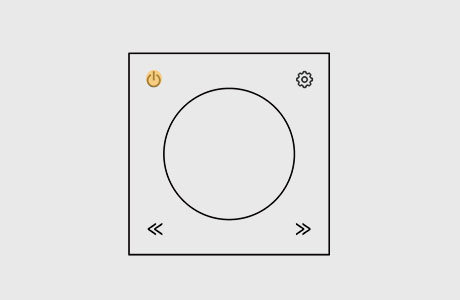

Short Press: Turn on/off the current channel.
Long press: Darken the light/Brighten the light.
Short Press: Switch mode (colour temperature mode/brightness mode).

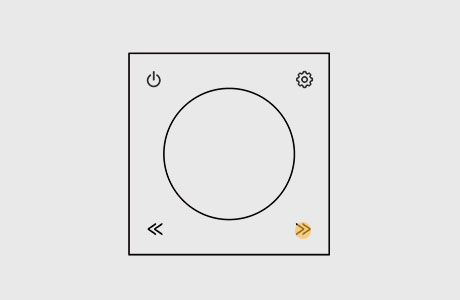

Adjustment Key

Short Press: The number of channels decreases/increases cyclically.

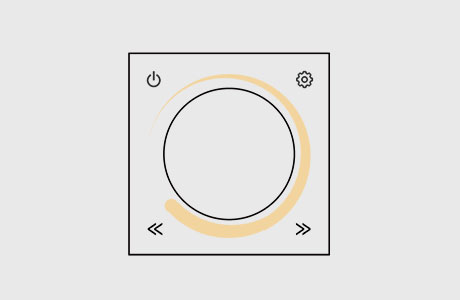

Rotary Knob

Clockwise Rotation: Brighten the light (brightness mode), cooling colour temperature (colour temperature mode).
Counter-cockwise Rotation: Darken the light (brightness mode), warming the colour temperature (colour temperature mode).
