Liquid Crystal Panel
  • Based on DALl bus, supports up to 64 devices, 16 groups and 16 scenes
  • Complies with lEC62386-103 protocol standard and passed certification
  • Each button supports custom functions: on/off, dimming and color adjustment,scene execution,etc
  • Supports local DALl address allocation, group addition, scene setting and status query
  • Provides timed execution function
  • Equipped with a 16-bit true colour 480x480 IPS LCD screen
  • Adopts capacitive touch and supports sensitive interactive operation
  • Buttons, texts, and icons can be edited/customized, supporting up to 16 buttons
  • Standard 86 box installation, suitable for Chinese standard and European standard bases
  • Password can be modified to enhance security
  • Power supply voltage: DC 12-24V
  • Communication protocol: DALI BUS
Dimensional Diagram

The DALl LCD panel is the control setting of the DALl user interface. lt can easily complete the address allocation, parameter setting, and lighting control of DALl devices.

Parameters
Basic Data Product Size 86*86*27.1mm
Depth of base case 15.1mm
Weight 117g
Output Signal DALl signal
Operating Voltage 12-24VDC
Operating Current MAX 150mA
Opearting Temperature -20℃ ≤Ta≤ 50℃
IP Rating IP20
Touch Type Capacitive touch
Display Screen IPS LCD
Operating Instructions

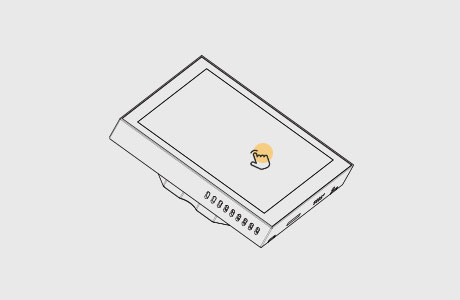

Capacitive Touch

Supports local DALl address allocation, group addition, scene setting and status query, provides timed execution function. Equipped with a16-bit true colour 480x480 IPS LCD screen.

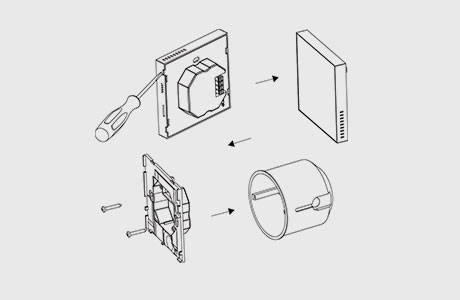

Installation Diagram

The product is very easy to install.

SD Card

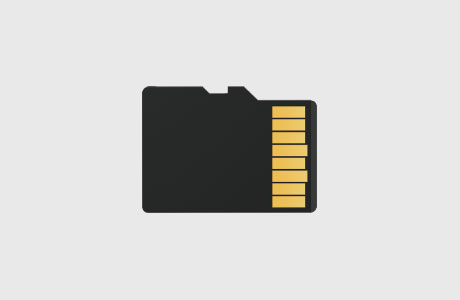

Insert microSD card: Import/Export settings.
