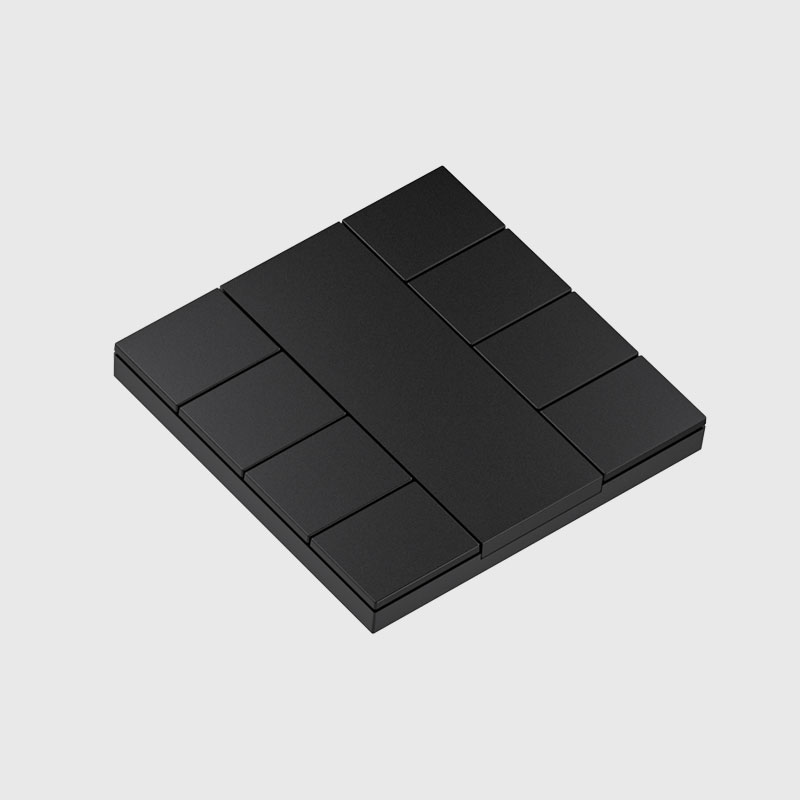

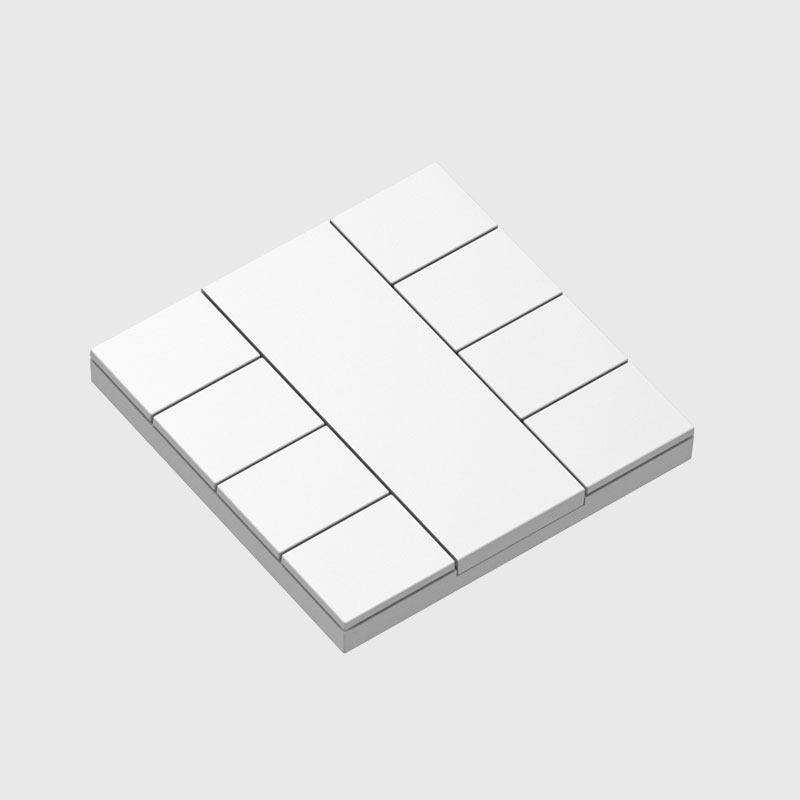

Mechanial Panel
  • Available for four groups of single-channel DALl dimming
  • Slim design
  • Backlit keys are designed for the use at night
  • The device is powered directly by the DALl bus
  • 4 DALl scences can be saved and run

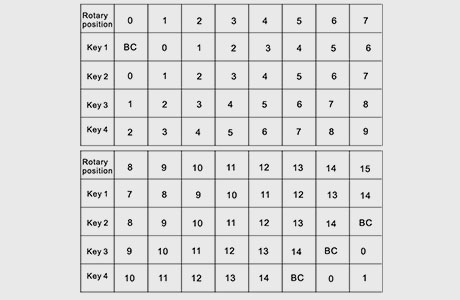

  • 4 groups or 3 groups + 1 broadcast can be controlled
  • Easy installation with mounting frame
  • IP grade:IP20
Dimensional Diagram

The DALl 8-button mechanical panel can directly control the switching and dimming of the DALl drive power supply, scene saving and operation.

Parameters
Basic Data Product Size 86*86*10mm
Depth of base case 16.4mm
Weight 107g
Power Supply Mode Powered by the DALl bus
Output DALl signal
Operating Current 10mA
Operating Temperature  0-40°C
Air Humidity 8%-80%
Operating Instructions
Key 1-4

Short Press: Turn to the brigtest/Turn off.
Long Press: Continuous brightening/darkening.

Key 5-8

Short Press: Run the corresponding scene.
Long Press: Save the current scene.

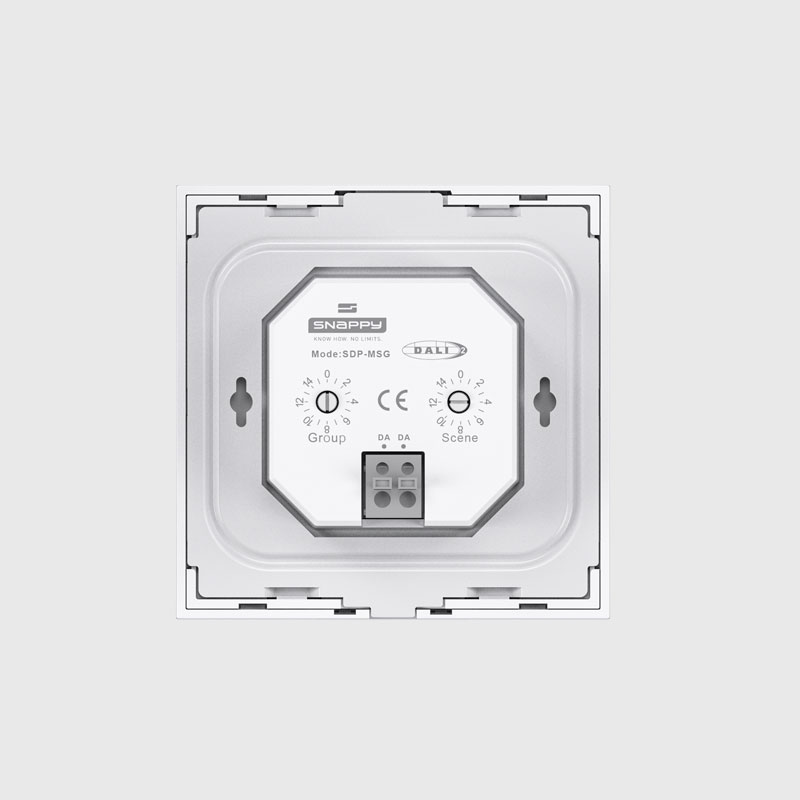

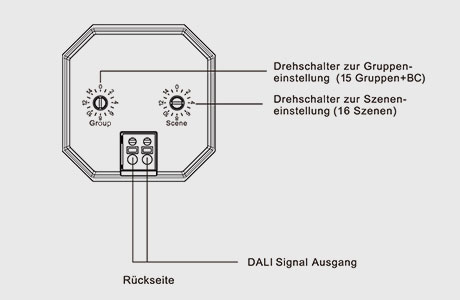

Machine structure

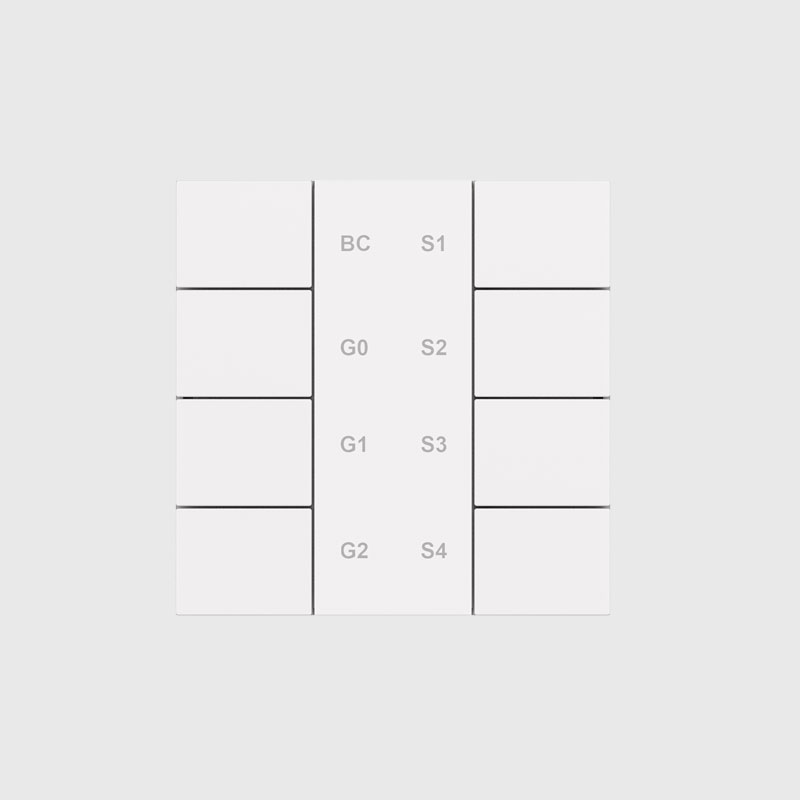

By short presses on the left side keys 1-4 you can turn the corresponding light groups on and off. Or long press to turn up and down the brightness of the corresponding light group.
