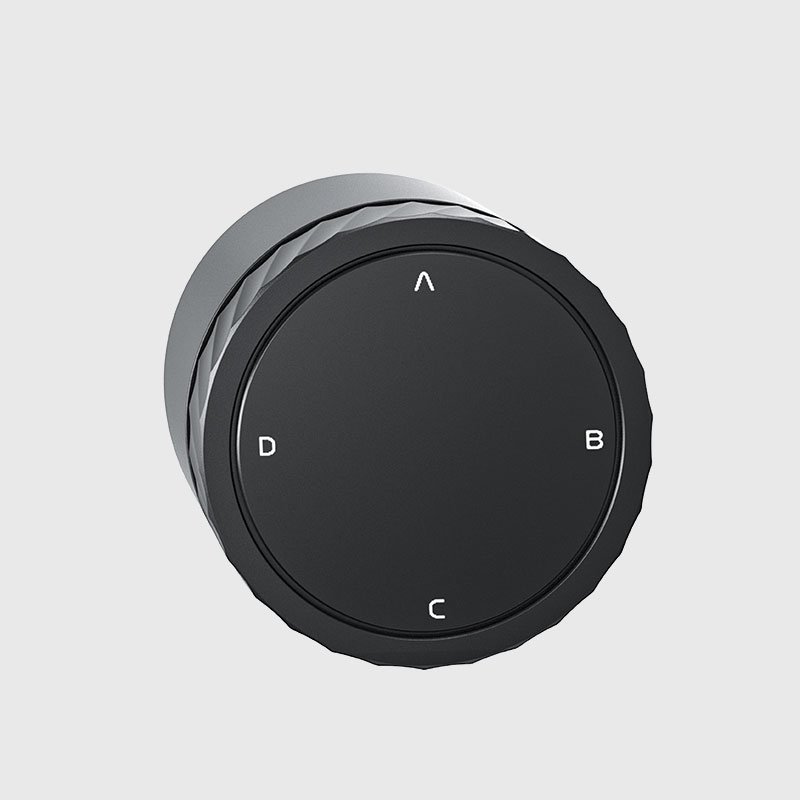

LCD Knob Panel
  • Provide four buttons and rotary operation control
  • Sensitive rotary operation
  • LED status indication during operation
  • Support dimming control, color temperature control
  • Button battery CR2450 or equivalent specifications power supply
  • 5 years warranty
Dimensional Diagram

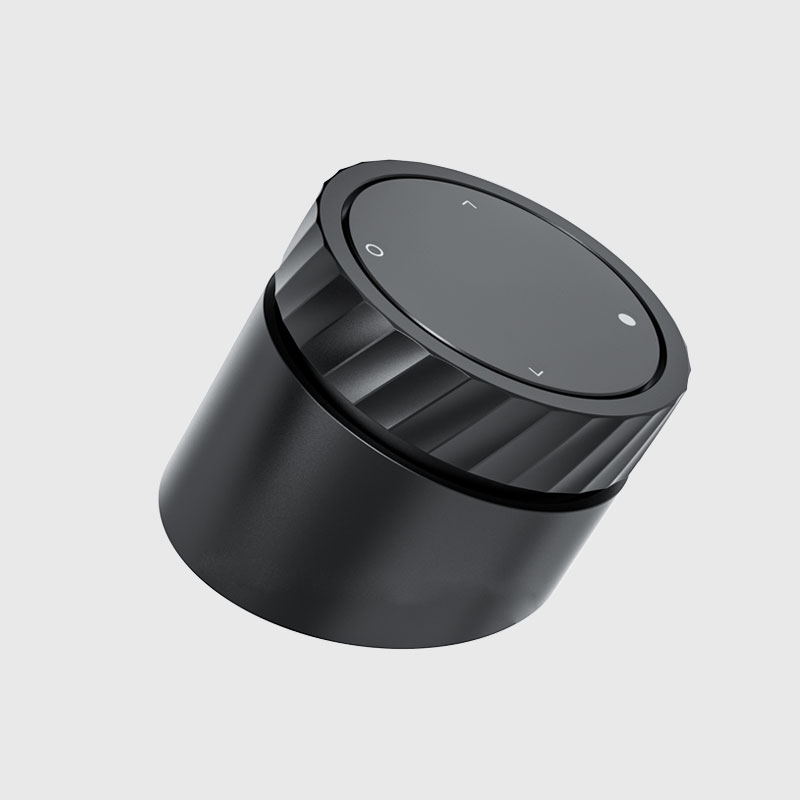

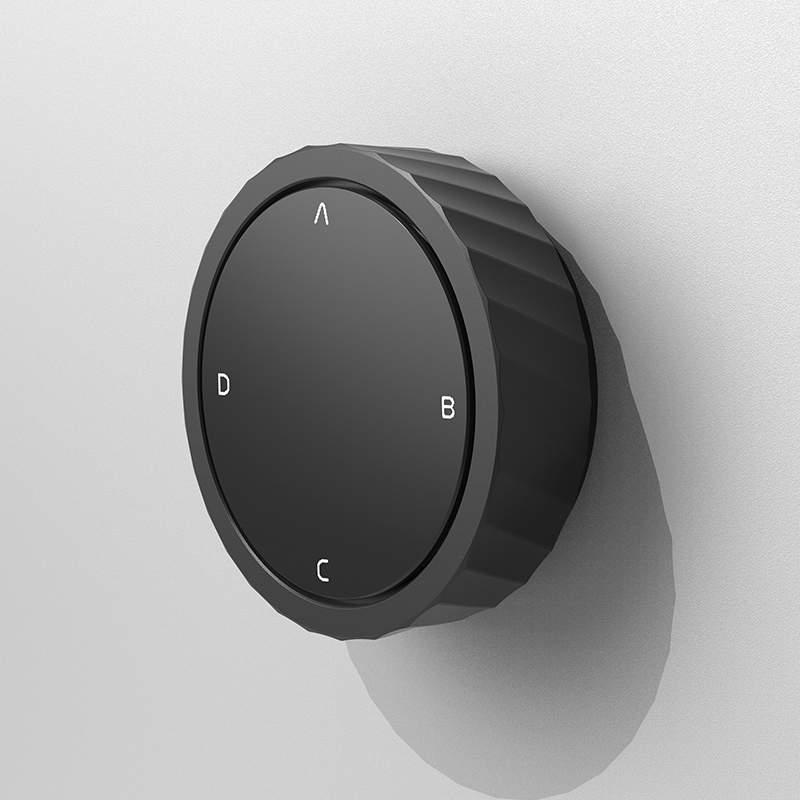

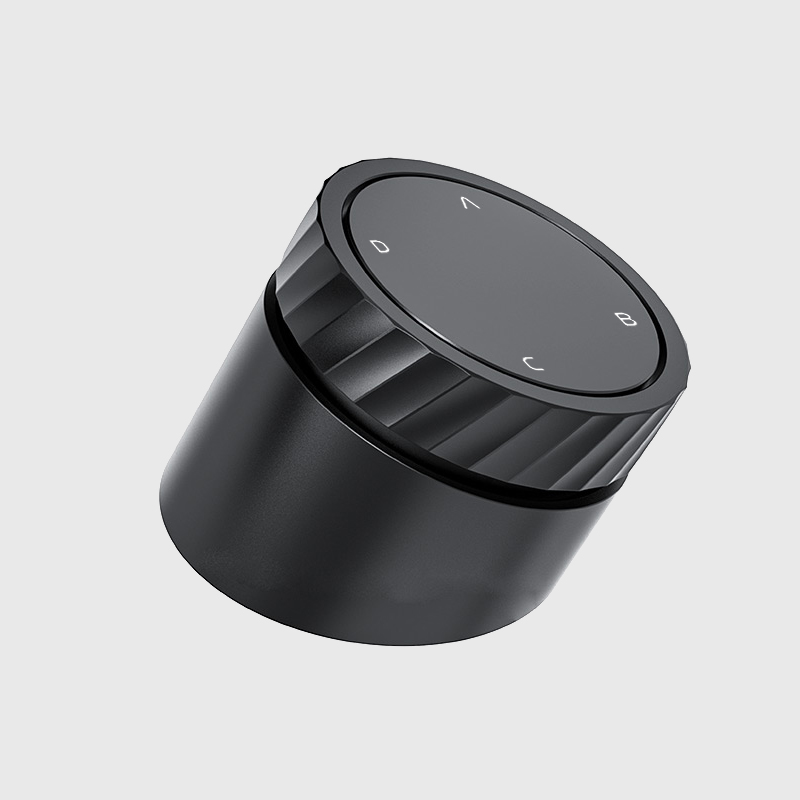

The rotary remote control is a wireless remote control device for the Casambi user interface. The remote control can be placed anywhere the user wants and it provides direct access to Casambi lighting.

Parameters
Basic Data Product Size φ66*61.5mm
Weight 390g
Output Signal Casambi
Working Voltage 3VDC(CR2450)
Operating Current 5mA
Standby Current 1uA
Battery Standby Time 3 years
Remote Control Distance 30m(Accessible open spaces)
Operation Temp -20℃ ≤Ta≤ 45℃
Max. Case Temp 50℃
IP Grade IP20
Operating Instructions
Function Description

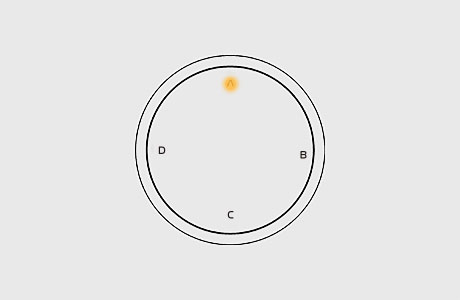

Short Press: Turn on/off the corresponding channel's light (brightness mode). Color temperature adjusts to the coldest/warmest (color temperature mode).
Long Press 3S: Turn off lights for all channels (the APP needs to select “Long press all OFF” ).
Double-click: Switch rotary control mode (color temperature mode/brightness mode).

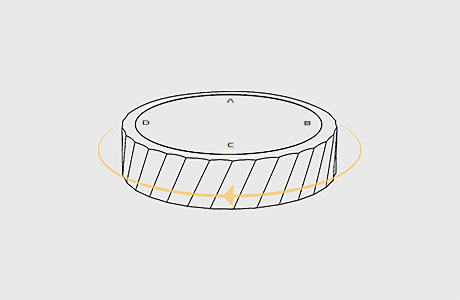

Clockwise Rotation: Brighten the brightness (brightness mode). Adjust the color temperature to the cold (color temperature mode).

Counter-clockwise Rotation: Dim the brightness (brightness mode). Adjust the color temperature to the warm (color temperature mode).
