SOA-IR-CW
Reliable Technical Data

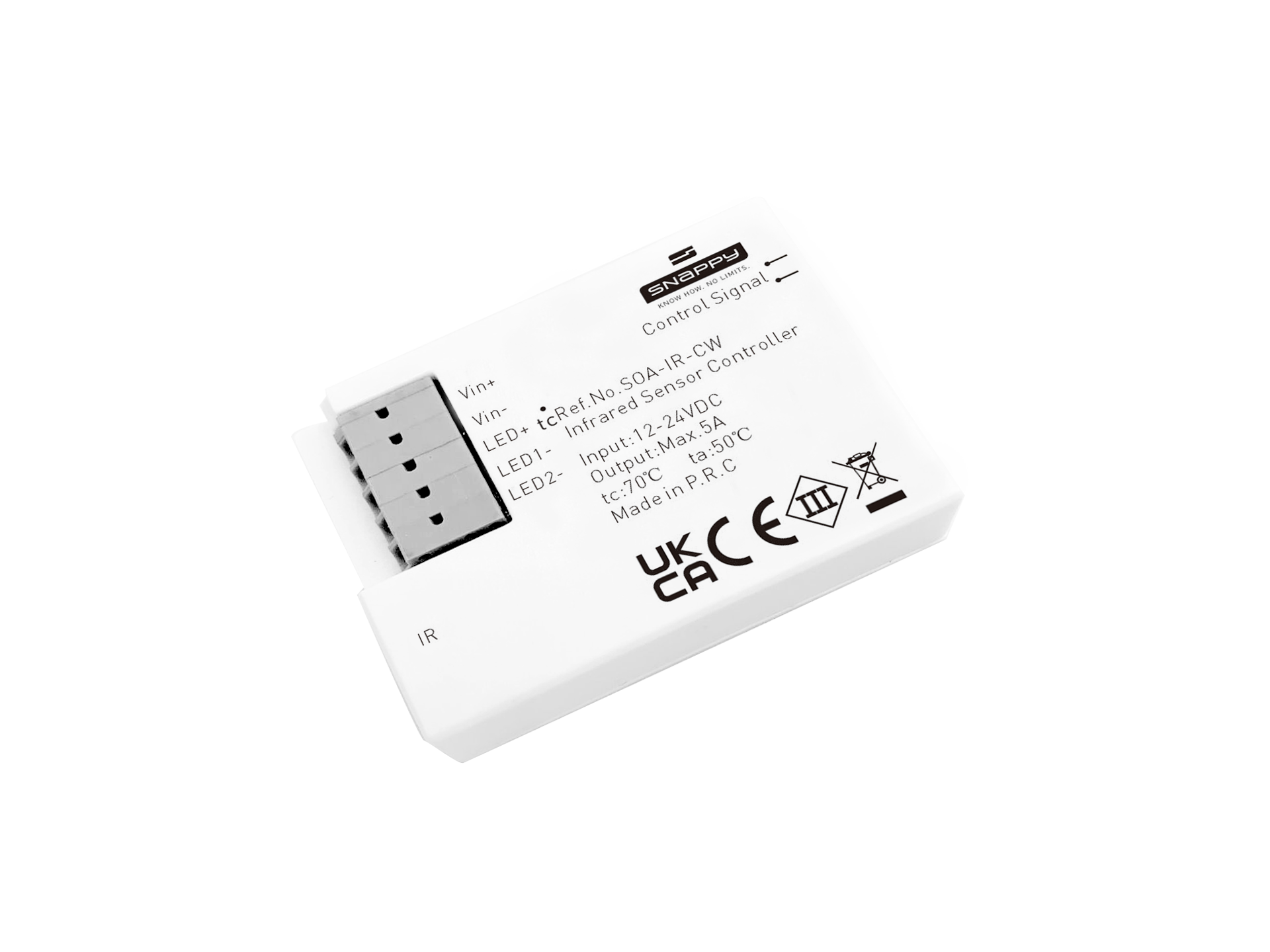

  • SOA-IR-CW is an infrared sensor, with 12V-24V input,which is often used for cabinet and mirror lights.The sensor has infrared induction,CCT adjustable function, memory function.

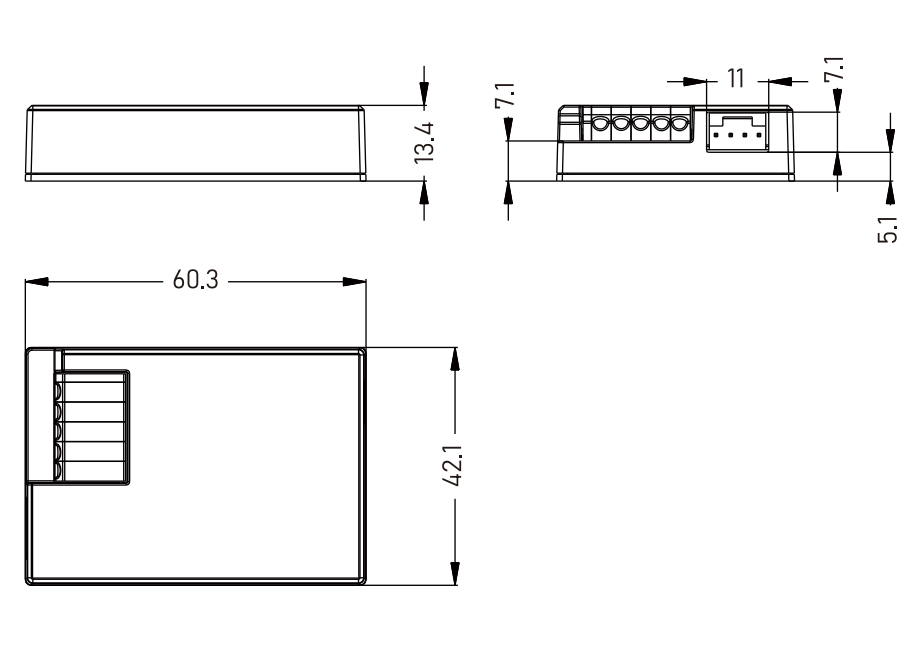

Dimension in mm





Model No. Rated input voltage Rated output current Load Ta L*W*H
SOA-IR-CW DC 12V 5A 0-60W -20~50℃ 60.3*42.1*13.4
DC 24V 5A 0-120W -20~50℃ 60.3*42.1*13.4
