HOME / PRODUCTS / LED STRIPS / LED STRIPS-CSP Series / CSP-LINEAR
CSP-LINEAR
Synopsis
Parameters & sizes
accessory
Packaging
Related Products

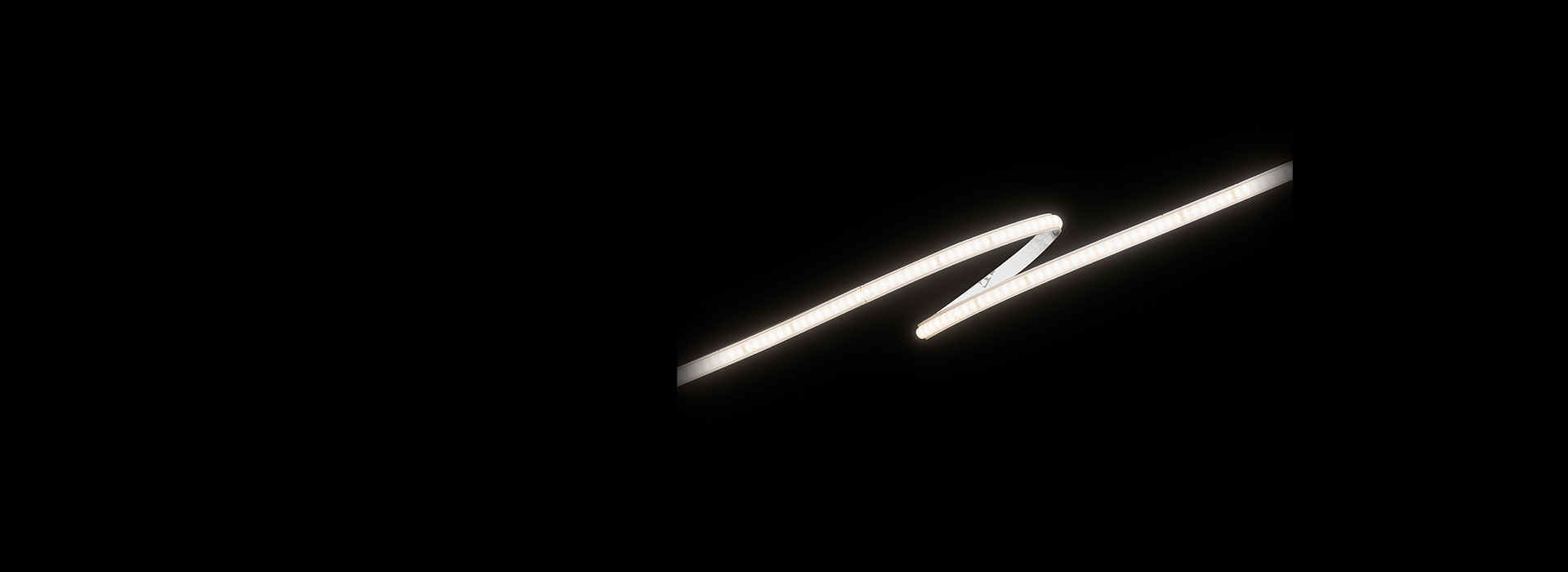

CSP LINEAR

CSP (Chip Scale Package) LED strips utilize semi-transparent silicone coatings to enhance light uniformity while providing dust and moisture resistance. Featuring a high-density LED arrangement, they deliver efficient light output with superior color consistency, ideal for high-quality lighting applications in compact spaces.

Parameters & sizes

Detailed Product Parameter Information



Parameters
Model No. Input Voltage Max.Power/M IP CRI CCT Lm/m Lm/W
CSP-480F-4-24V 24V 9W IP20 - 4000K 665 74
CSP-512F-8-24V 24V 10W IP20 - 4000K 760 76
CSP-640F-10-24V-CCT 24V 12W IP20 - CCT 980 81
CSP-840F-10-24V-RGB 24V 14.4W IP20 - RGB 735 51



sizes
Model No. Max.Length Width Cutting Unit
CSP-480F-4-24V 2.5M 4mm 50mm
CSP-512F-8-24V 5M 8mm 31.25mm
CSP-640F-10-24V-CCT 5M 10mm 50mm
CSP-840F-10-24V-RGB 5M 10mm 50mm
accessory

Essential Accessories for LED Strip Installation.

Profile

Controller

Power Supply

Remote Control

L Connector

L Connector

Connector

Connector

Packaging Display

Sustainable Professional Packaging Systems.

Step 1 Wrap the light tape with a reel.

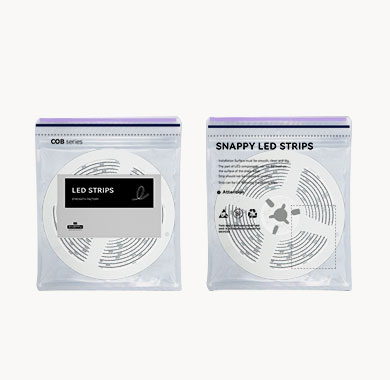

Step 2 Reels are loaded into electrostatic bags and sealed.

Step 3 Carton package.
