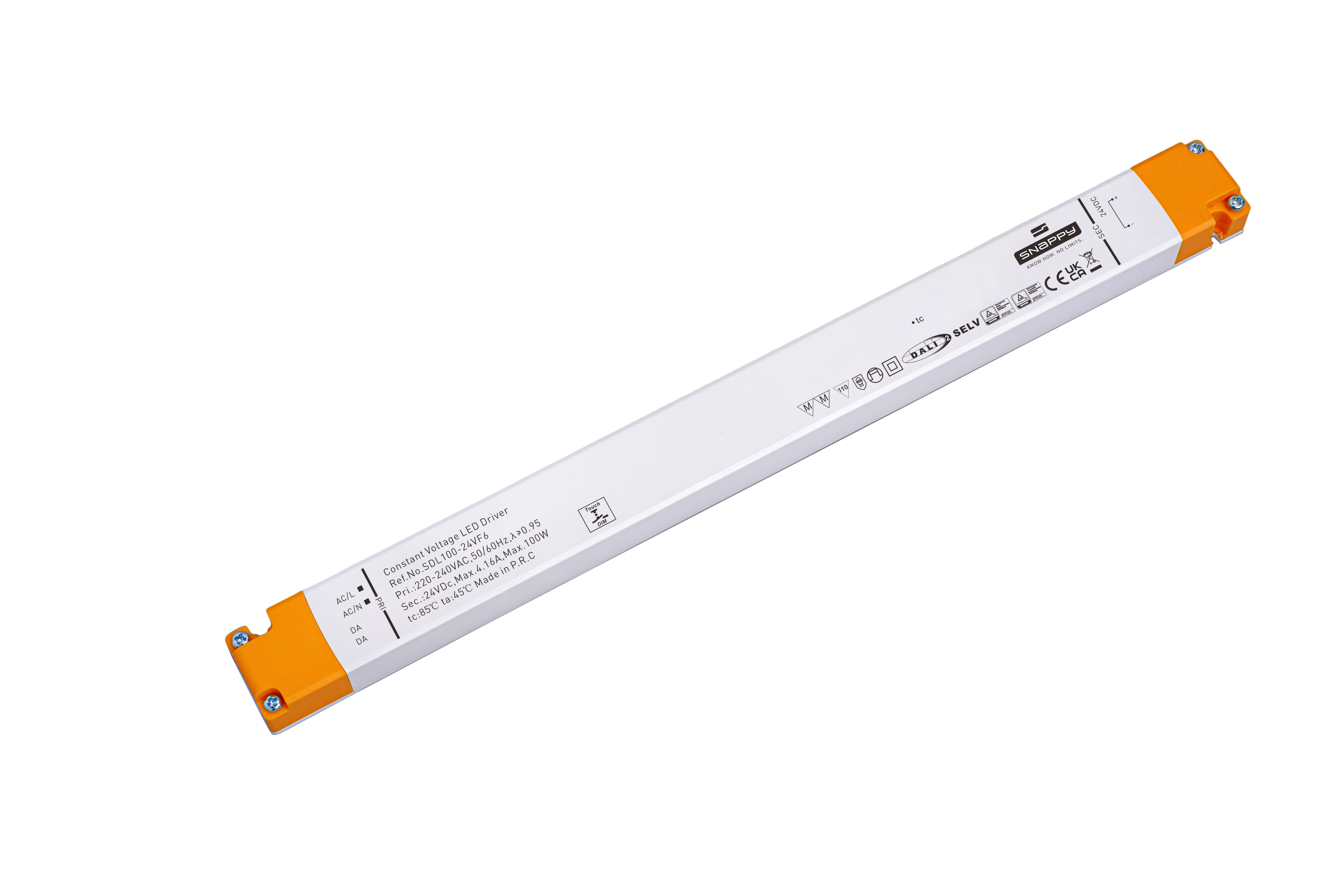

SDL100-12/24/48VF6 24VF8
Reliable Technical Data
  • Input Voltage Range: 220-240VAC
  • Input Frequency:50Hz/60Hz
  • Output Power:60W
  • Body:Plastic case
  • Short Circuit;Over Load;Over Voltage
  • Over Heat Protection

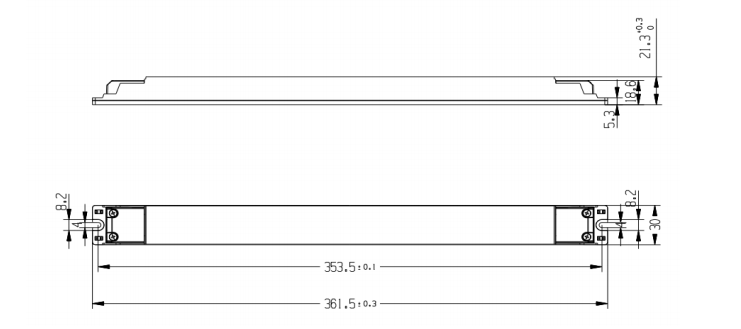

Dimension in mm



Input Voltage Range: 220-240VAC 50/60Hz {power factor measured at AC230V and full load}



Model No. Constant Output Voltage Max output current Load PF Ta Tc L*W*H
SDL100-12VF6 12V 5.0A 6-60W >0.9 45℃ 85℃ 361.5*30*21.3
SDL100-24VF6 24V 2.5A 6-60W >0.9 45℃ 85℃ 361.5*30*21.3
SDL100-48VF6 48V 1.25A 6-60W >0.9 45℃ 85℃ 361.5*30*21.3
SDL100-24VF8 24V 2.5A 6-60W >0.9 45℃ 85℃ 361.5*30*21.3
