SDL100-24VF-2CH
Reliable Technical Data
  • Input Voltage Range: 220-240VAC
  • Input Frequency:50Hz/60Hz
  • Output Power:100W
  • Body:Plastic case
  • Short Circuit;Over Load;Over Voltage
  • Over Heat Protection

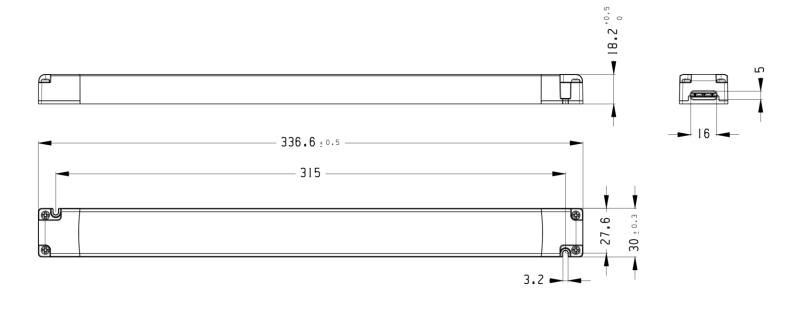

Dimension in mm



Input Voltage Range: 220-240VAC 50/60Hz {power factor measured at AC230V and full load}



Model No. Constant Output Voltage Max output current Load PF Ta Tc L*W*H
SDL100-24VF-2CH 24V 4.16A 10-100W ≥0.95 45℃ 85℃ 336.6*30*18.2
