HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-Indoor / SE12-300/350IF
SE12-300/350IF
Reliable Technical Data
  • Input Voltage Range: 200-240VAC
  • Input Frequency: 50/60Hz
  • Output Power: 12W
  • Body: PC
  • Open Circuit; Short Circuit; Over Load

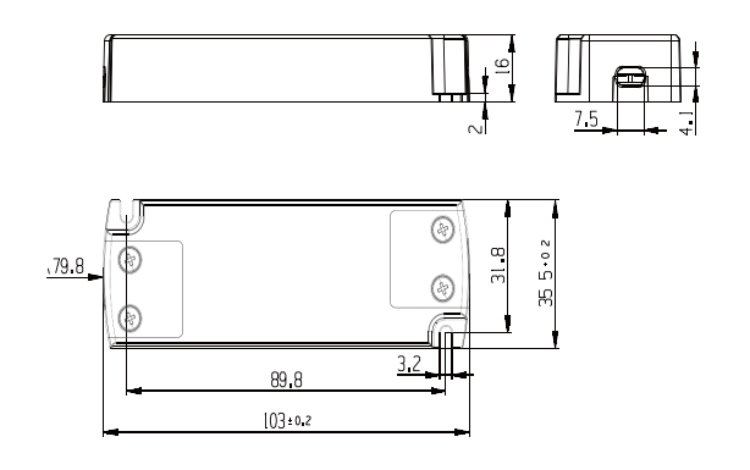

Dimesion drawing
Characteristics

Dimension in mm

Input Voltage Range: AC200-240V 50/60Hz (power factor measured at AC230V and full load)



Model No. Constant Output current  Load output voltage range PF Ta Tc L*W*H
SE12-300IF 300mA 5.1-12W 17-40V ≥0.9 45℃ 80℃ 103*35.5*16
SE12-350IF 350mA 4.9-12W 14-34.3V ≥0.81 45℃ 75℃ 103*35.5*16
