HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-Indoor / SE20-350/500/700IF

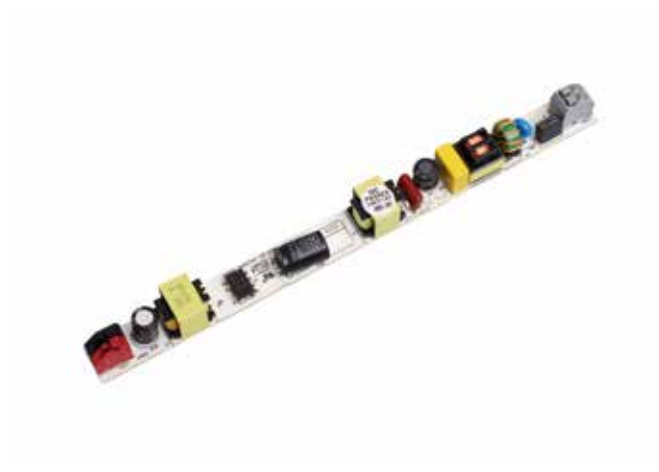

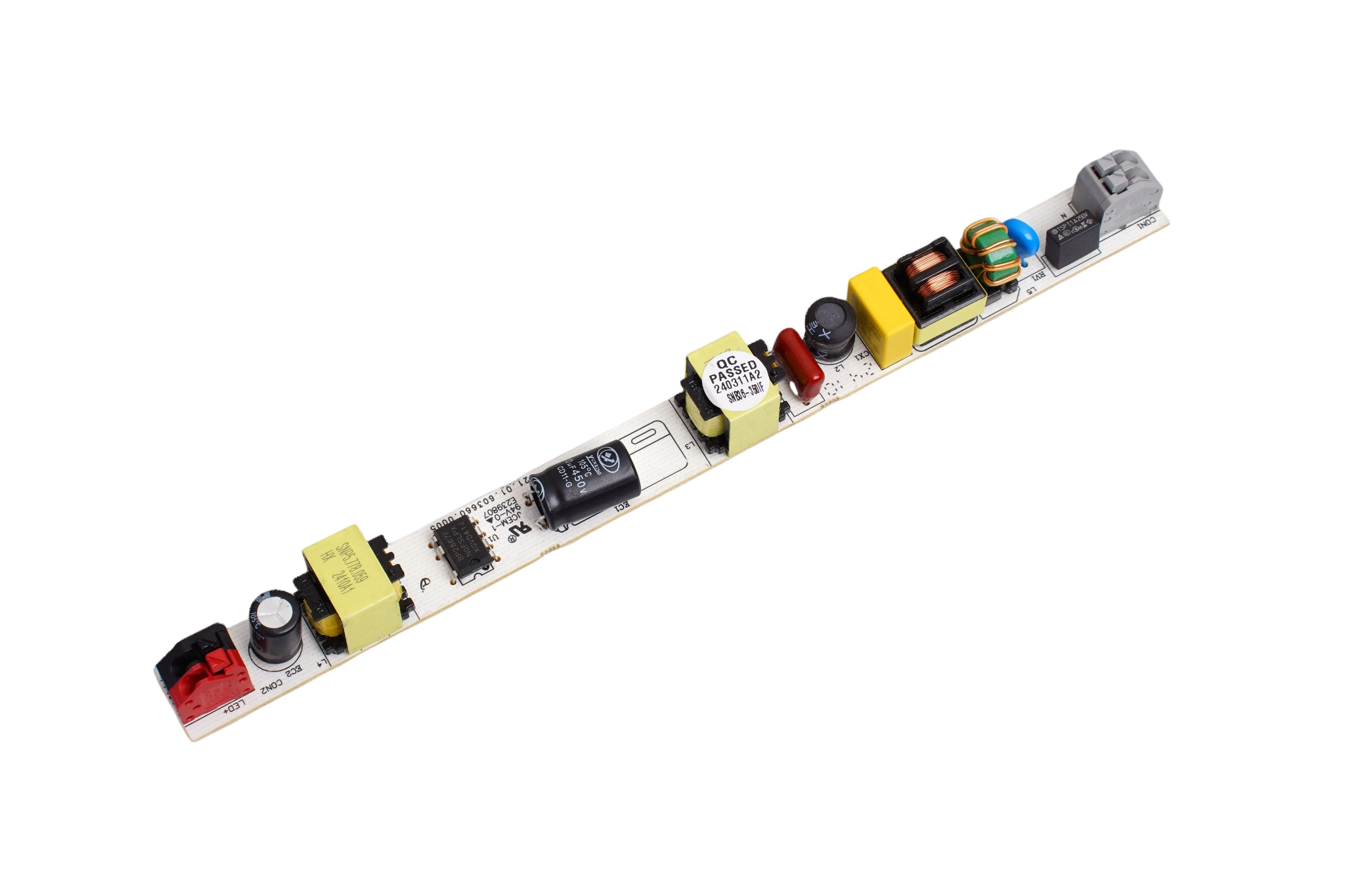

SE20-350/500/700IF
Reliable Technical Data
  • Input Voltage Range: 200-240VAC
  • Input Frequency: 50/60Hz
  • 0utput Power: 20W
  • Body: PC
  • 0pen Circuit; Short Circuit; Over Load

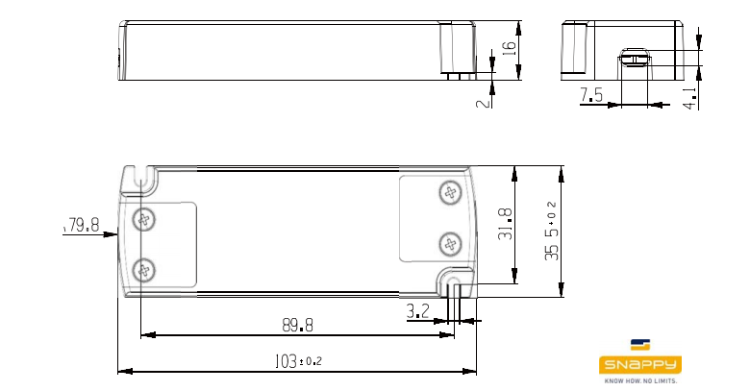

Dimesion drawing
Characteristics

Dimension in mm

Input Voltage Range: AC200-240V 50/60Hz (power factor measured at AC230V and full load)



Model No. Constant Output current  Load output voltage range PF Ta Tc L*W*H
SE20-350IF 350mA 10-20W 28.6-57.2V ≥0.82 45℃ 85℃ 103*35.5*16
SE20-500IF 500mA 10-20W 20-40V ≥0.82 45℃ 85℃ 103*35.5*16
SE20-700IF 700mA 10-20W 14.3-28.6V ≥0.82 45℃ 85℃ 103*35.5*16
