HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-OUTdoor / SPG200-12/24A

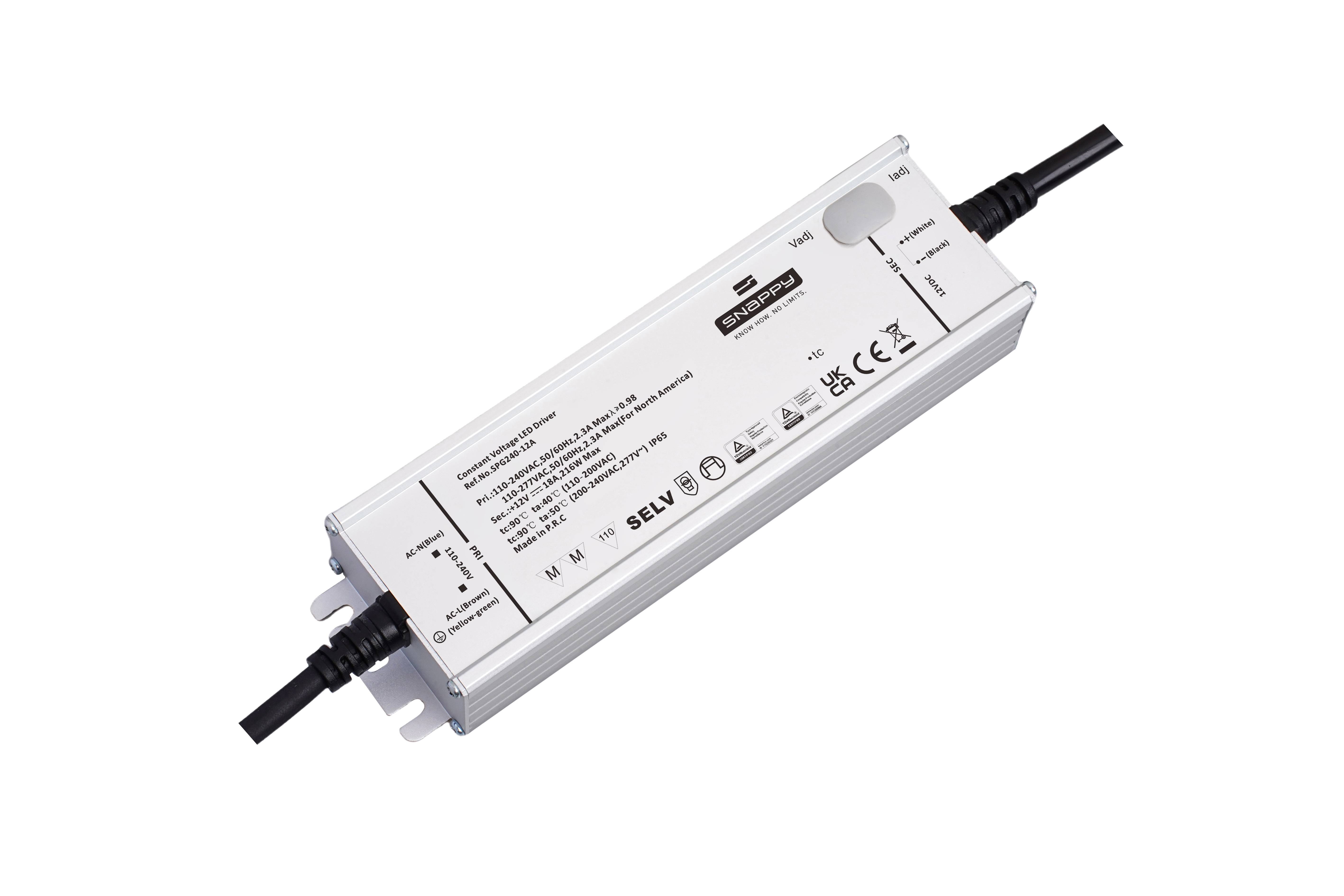

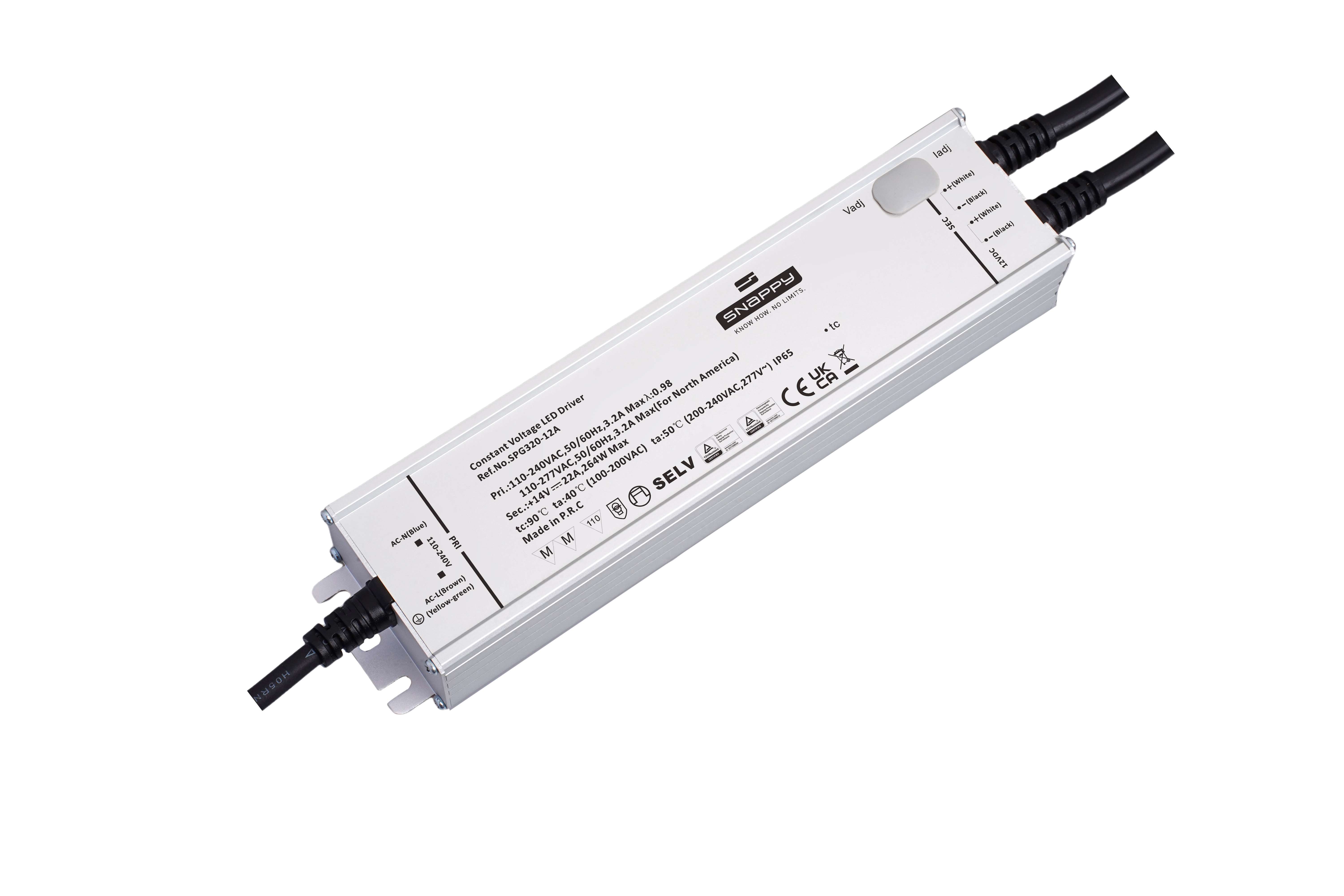

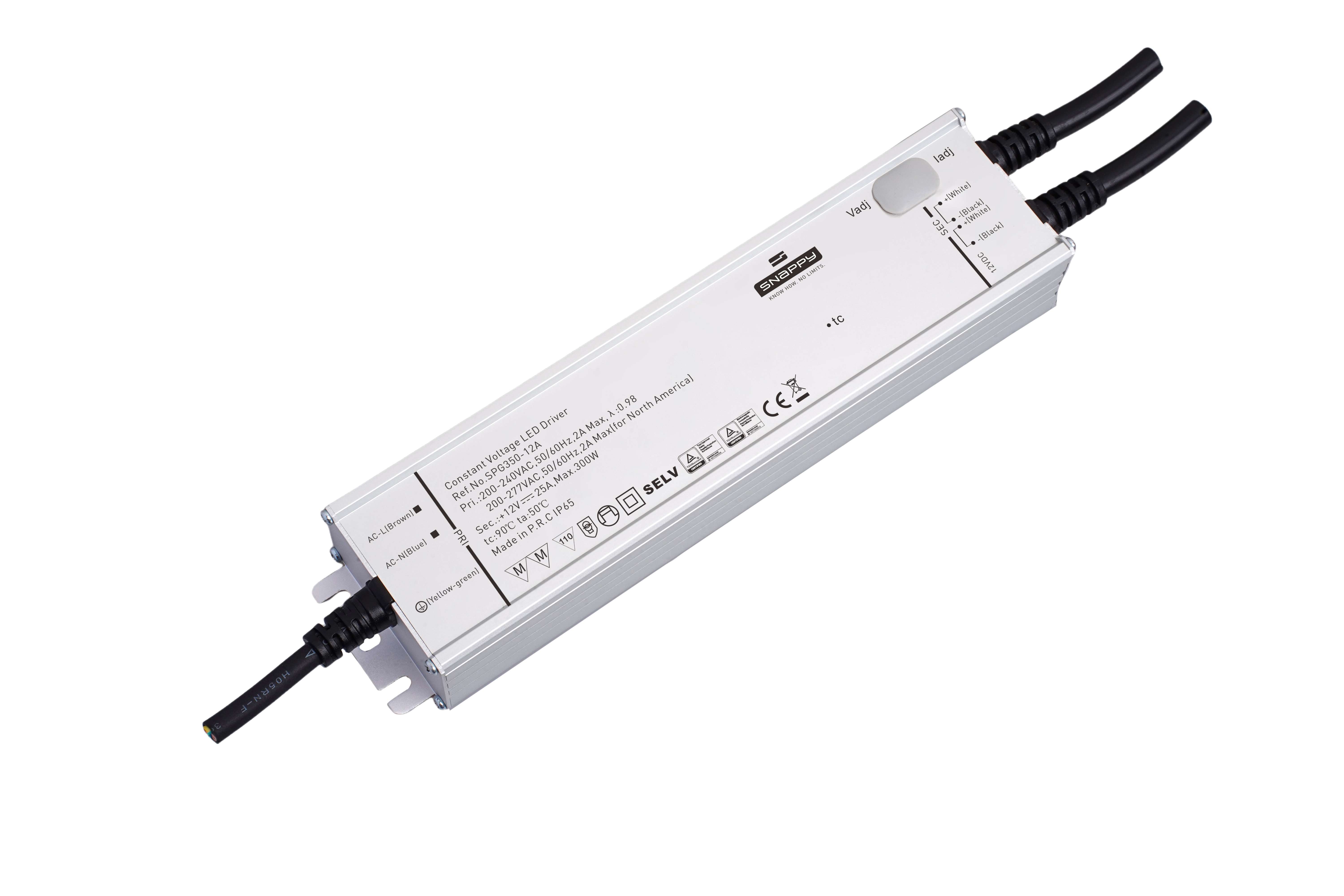

SPG200-12/24A
Reliable Technical Data
  • Input Voltage Range:110-277VAC
  • IP65 design for indoor or outdoor installation
  • Protections:short circuit/over load/over voltage/over temperature
  • Built in active PFC function
  • Cooling by free air, high reliability
  • 100% burn-in with full load
  • Suitable for LED lighting and moving sign applications
  • A series: 0utput current and voltage is adjustable,IP65
  • Compliance to worldwide safety regulation for LED lightings
  • 5 years warranty

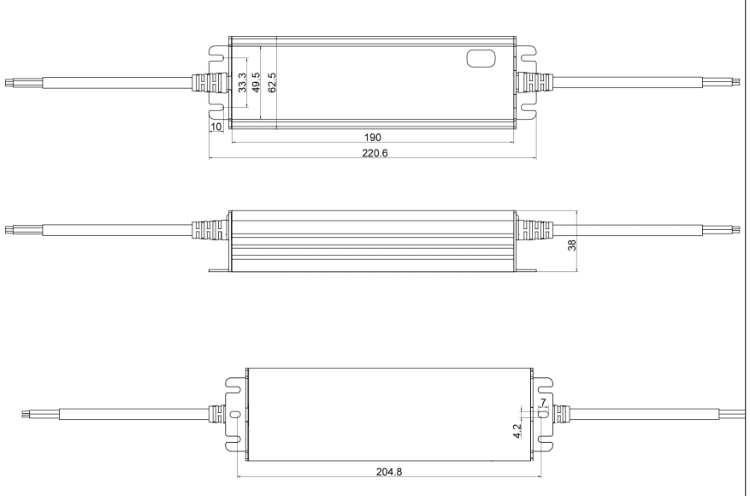

Dimesion drawing
Characteristics

Dimension in mm



Input Voltage Range:AC110-277V 50/60Hz [power factor measured at AC230V and full load)



Model No. Constant output voltage Load Max output current PF Ta Tc L*W*H IP
SPG200-12A 12V 0-192W 16A ≥0.98 70℃ 90℃ 220.6*62.5*38 IP65
SPG200-24A 24V 0-200W 8.33A ≥0.98 70℃ 90℃ 220.6*62.5*38 IP65
