HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-OUTdoor / SPG80-12/24UV

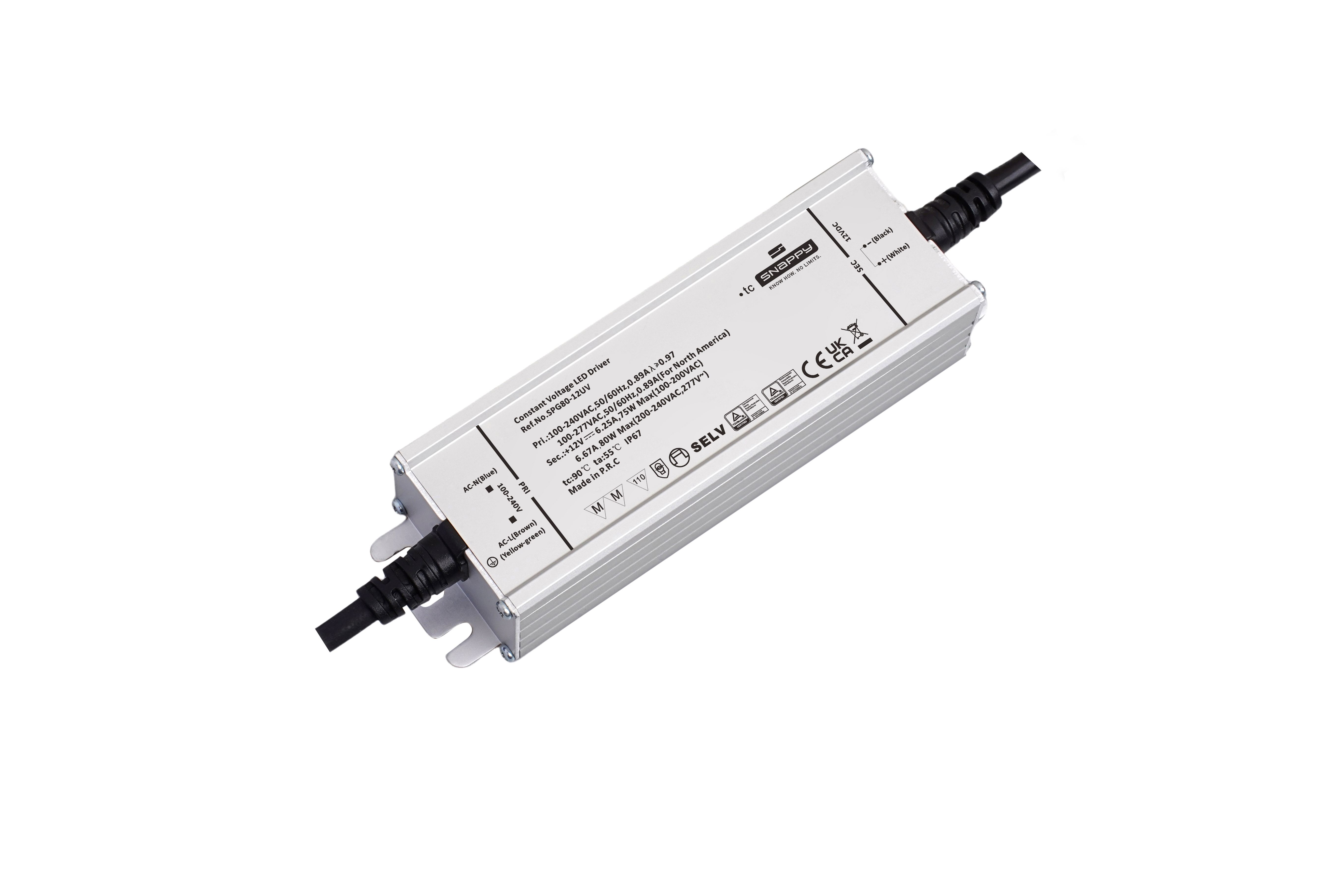

SPG80-12/24UV
Reliable Technical Data
  • Input Voltage Range:110-277 VAC
  • IP67 design for indoor or outdoor installation
  • Protections:short circuit/over load/over voltage/over temperature
  • Built in active PFC function
  • Cooling by free air, high reliability
  • 100% burn-in with full load
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulation for LED lightings
  • 5 years warranty

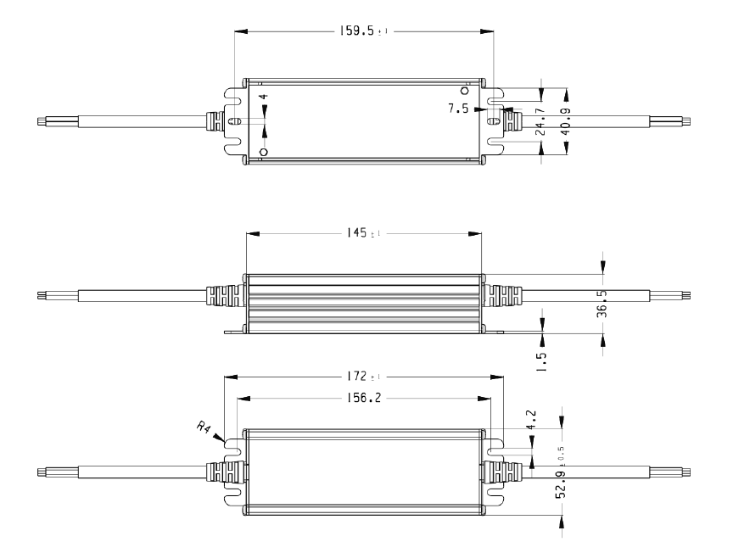

Dimesion drawing
Characteristics

Dimension in mm



Input Voltage Range:AC110-277V 50/60Hz [power factor measured at AC230V and full load)



Model No. Constant output voltage Load Max output current PF Ta Tc L*W*H IP
SPG80-12UV 12V 0-75W/0-80W 6.25A/6.67A ≥0.97 65℃ 90℃ 172*52.9*36.5 IP67
SPG80-24UV 24V 0-75W/0-80W 3.125A/3.33A ≥0.97 65℃ 90℃ 172*52.9*36.5 IP67


0-75W 6.25A/3.125A 100-200VAC

0-80W 6.67A/3.33A 200-240VAC,277VAC
