HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-Indoor / SS20-12/24VF
SS20-12/24VF
Reliable Technical Data
  • Input Voltage Range: 220-240VAC
  • Input Frequency: 50/60Hz
  • 0utput Power: 20W
  • Body: PC
  • 0pen Circuit; Short Circuit; Over Load

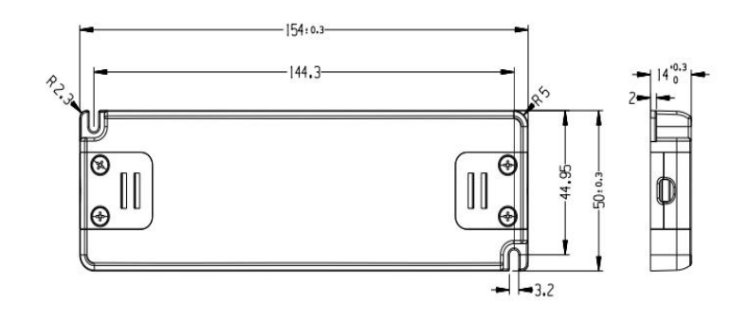

Dimesion drawing
Characteristics

Dimension in mm



Input Voltage Range: AC220-240V 50/60Hz (power factor measured at AC230V and full load)



Model No. Constant output voltage  Load Max output current PF Ta Tc L*W*H
SS20-12VF 12V 0-20W 1.67A ≥0.95 45℃ 80℃ 154*50*14
SS20-24VF 24V 0-20W 0.83A ≥0.95 45℃ 80℃ 154*50*14
