HOME / PRODUCTS / POWER SUPPLY / POWER SUPPLY-Indoor / SE15-300/340/350/500/700IF

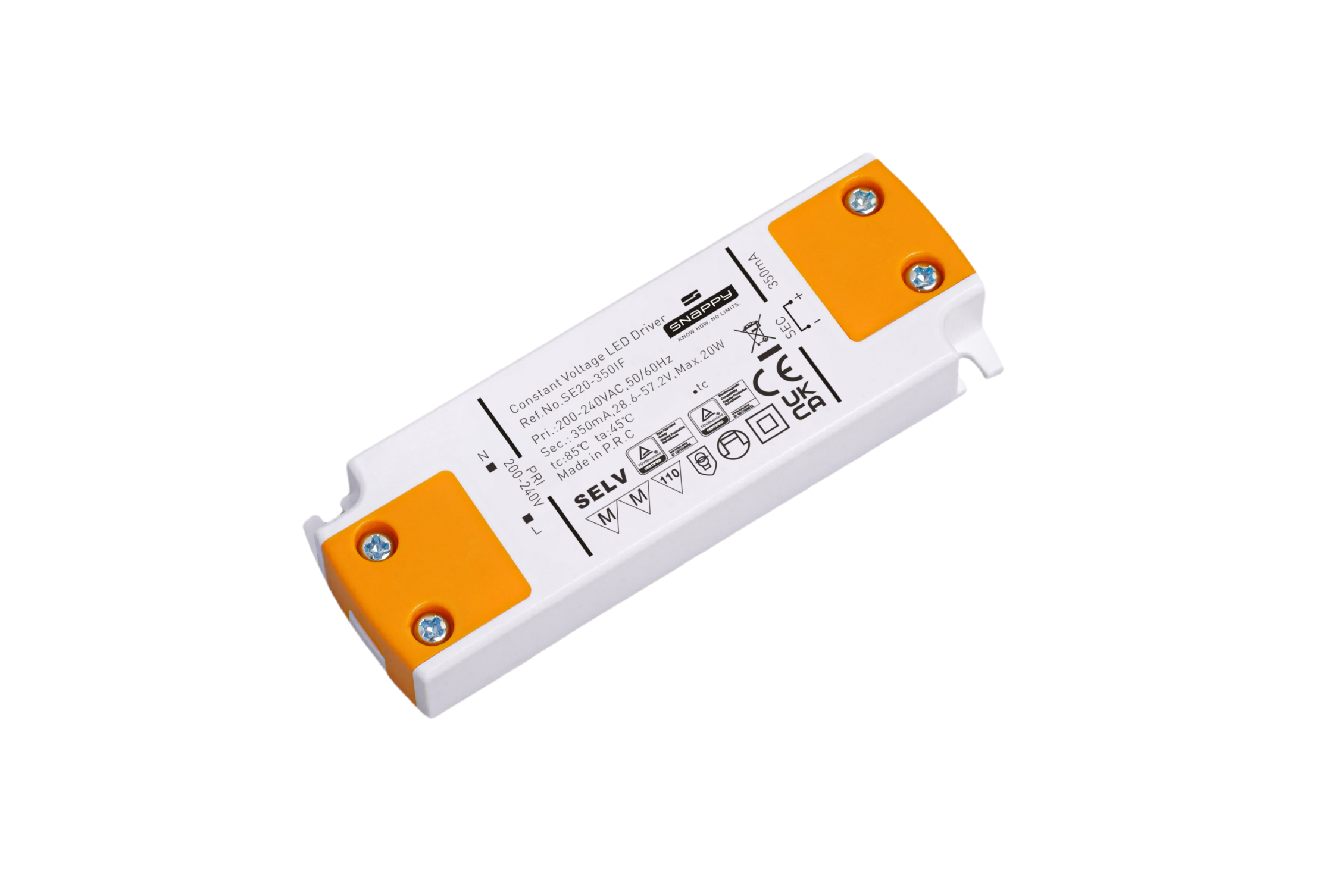

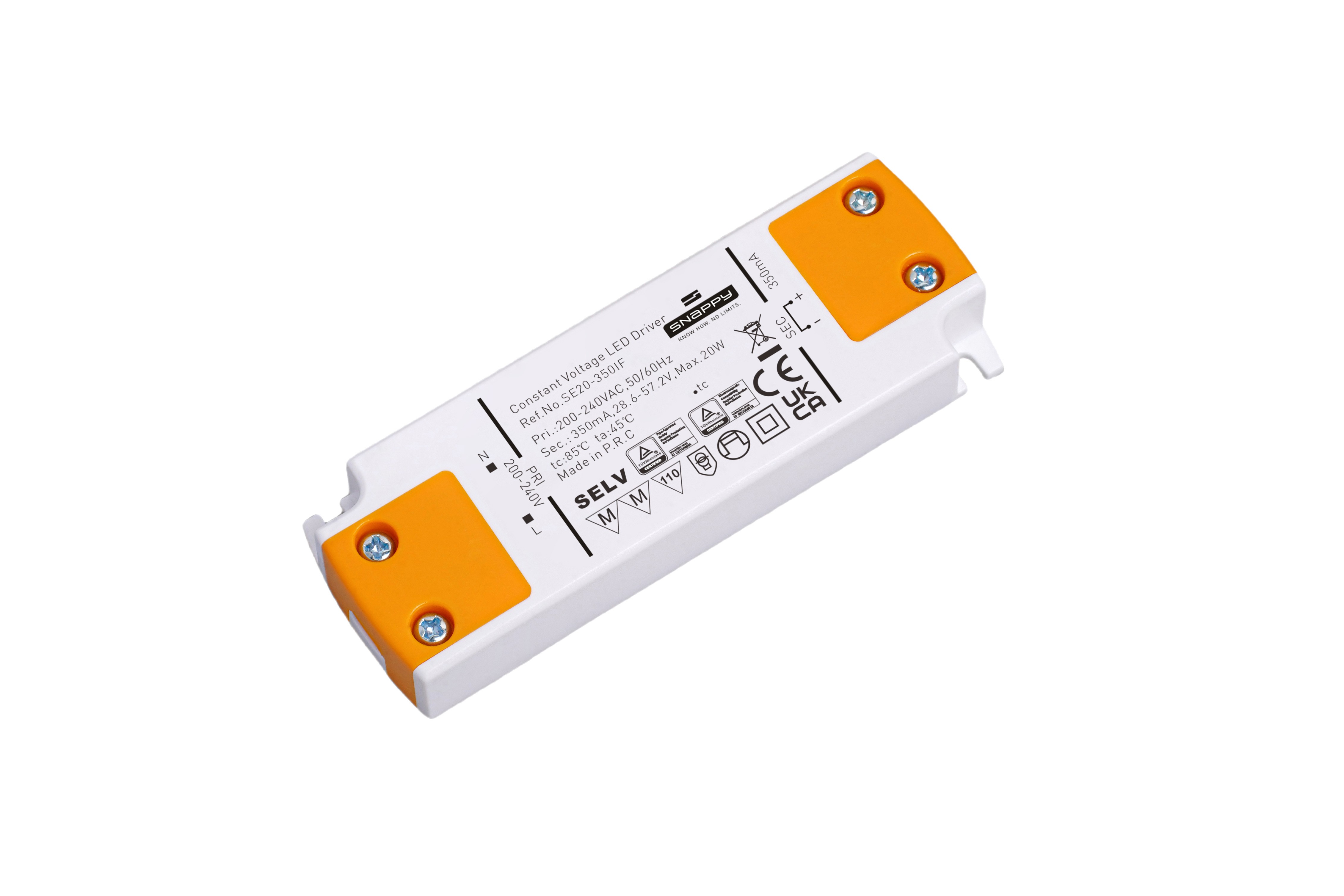

SE15-300/340/350/500/700IF
Reliable Technical Data
  • Input Voltage Range: 200-240VAC
  • Input Frequency: 50/60Hz
  • Output Power: 15W
  • Body: PC
  • Open Circuit; Short Circuit; Over Load

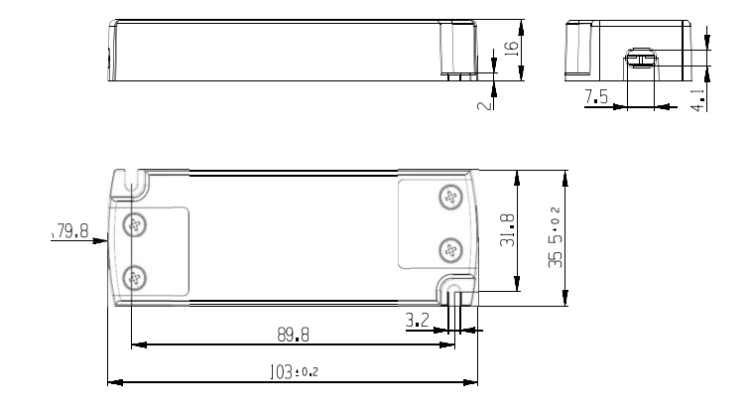

Dimesion drawing
Characteristics

Dimension in mm

Input Voltage Range: AC200-240V 50/60Hz (power factor measured at AC230V and full load)



Model No. Constant Output current  Load output voltage range PF Ta Tc L*W*H
SE15-300IF 300mA 8.7-15W 29-50V ≥0.80 45℃ 85℃ 103*35.5*16
SE15-340IF 340mA 8.7-15W 26-44V ≥0.80 45℃ 85℃ 103*35.5*16
SE15-350IF 350mA 7.5-15W 21.4-42.8V ≥0.80 45℃ 80℃ 103*35.5*16
SE15-500IF 500mA 7.5-15W 15-30V ≥0.80 45℃ 80℃ 103*35.5*16
SE15-700IF 700mA 7.5-15W 10.7-21.4V ≥0.80 45℃ 80℃ 103*35.5*16
